CPU Cooling
Fan (Blower) with
Heatsink

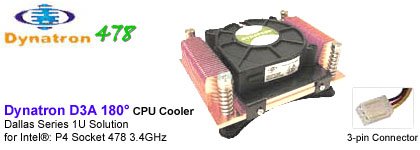

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Dallas Series D3A 180° for Socket 478 FNC-478-D3A-1UB Model Number: Dynatron ( Top Motor ) Dallas Series D3A Application: Intel® P4 Socket 478 up to 3.4GHz Overall Dimension: 95 x 74 x 25 mm Thermal Resistance: ---- °C/W Weight: 440 g Fan (Blower) Dimension: 60x60x15 mm Fan (Blower) Speed: 6000 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.47 A Power: 5.64 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 7.40 CFM Air Pressure: 1.12 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 95 x 74 x 25 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.30 mm Thickness of Fin: 0.55 mm Number of Fin: 27 Height of Fin: 20.00 mm Height of Base: 4.00 mm Length of Base: 95.0 mm |
