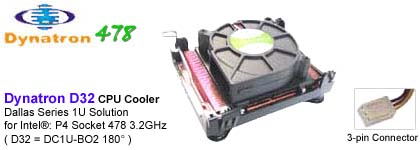

FNC-478-D32-1UB CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) 1U Solution D32

CPU Cooling Fan (Blower) with Heatsink
1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Dallas Series D32
for Socket 478
( D32 = DC1U-BO2 180° )
FNC-478-D32-1UB

Model Number: Dynatron ( Top Motor ) Dallas Series D32
Application: Intel®: P4 Socket 478 3.2GHz for 1U server
Overall Dimension: 88.5 x 62 x29.5 mm
Thermal Resistance: ---- °C/W
Weight: 345 g

Fan (Blower) Dimension: 60 x 60 x 15 mm
Fan (Blower) Speed: 6000 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: 0.47 A
Power: 5.64 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 7.4 CFM

Noise Level: 49.80 dBA
Air Pressure: 1.12 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 89 x 80 x 12.9 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.3 mm
Thickness of Fin: 0.5 mm
Number of Fin: 46
Height of Fin: 9.1 mm
Height of Base: 4.5 mm
Length of Base: 60 mm
