CPU Cooling
Fan with
Heatsink

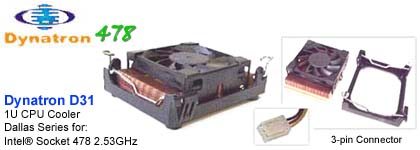

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Dallas Series D31 for Socket 478 FNC-478-D31-1U Model Number: Dynatron ( Top Motor ) Dallas Series D31 Application: Intel® Socket 478 2.53GHz for 1U Server Overall Dimension: 89.3 x 62 x 25 mm Thermal Resistance: 0.44 °C/W Weight: 334 g Fan Dimension: 60 x 60 x 10 mm Fan Speed: 5300 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.32 A Power: 3.84 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 23.39 CFM Air Pressure: 0.18 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89 x 60 x 12.9 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.3 mm Thickness of Fin: 0.5 mm Number of Fin: 46 Height of Fin: 9.1 mm Height of Base: 4.5 mm Length of Base: 60 mm |
