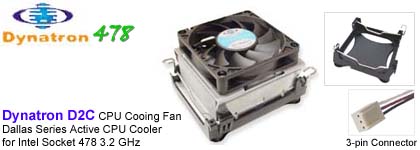

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Dallas Series D2C Active CPU Cooler
for Intel® Socket 478 3.2 GHz
FNC-478-D2C

Application: Intel P4 Socket 478 3.2GHz

Weight: 300 g

Fan Dimension: 70x70x15 mm
Fan Speed: 4300 ±10% rpm
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: 0.34 A
Power: 4.08 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 30.24 CFM

Noise Level: 38.58 dBA
Air Pressure: 0.16 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Fan Dimension: 89.0 x 63.5 x 32.0
Heat Sink Material: Aluminum
Heat Sink Pitch: 1.0 mm
Thickness of Fin: 0.5 mm
Number of Fin: 42
Height of Fin: 23.50 mm
Height of Base: 5.10 mm
Length of Base: 89 mm
