CPU Cooling

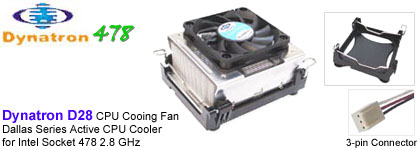

Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Dallas Series D28 Active CPU Cooler for Intel® Socket 478 2.8 GHz FNC-478-D28 Application: Intel P4 Socket 478 2.8GHz
Overall
Dimension:
89.0 x 63.5 x 47.0 mm
Weight: 270 g Fan Dimension: 60x60x10 mm Fan Speed: 5100 ±10% rpm Bearing: Single Ball Bearing Rated Voltage: 12V Rated Current: 0.29 A Power: 3.48 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 24.40 CFM Air Pressure: 0.18 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89.0 x 63.5 x 32.0 mm Heat Sink Material: Aluminum Heat Sink Pitch: 1.0 mm Thickness of Fin: 0.5 mm Number of Fin: 42 Height of Fin: 23.50 mm Height of Base: 5.10 mm Length of Base: 89 mm |
