CPU Cooling

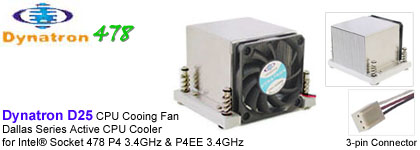

Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Dallas Series D25 Active CPU Cooler for Intel® Socket 478 P4 3.4GHz & P4EE 3.4GHz FNC-478-D25-SIDE Application: Intel® Socket 478 P4 3.4Ghz and P4EE up to 3.4GHz for Desktop / 2U Server Thermal Resistance: 0.32 °C/W
Overall
Dimension:
90.0 x 76.0 x 60.0 mm
Weight: 360 g Fan Dimension: 60x60x10 mm Fan Speed: 5100 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.29 A Power: 3.48 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 24.40 CFM Air Pressure: 0.18 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 90.0 x 76.0 x 58.5 mm Heat Sink Material: Aluminum Heat Sink Pitch: 1.0 mm Thickness of Fin: 0.7 mm Number of Fin: 30 Height of Fin: 50.5 mm Height of Base: 8.0 mm Length of Base: 90 mm |
