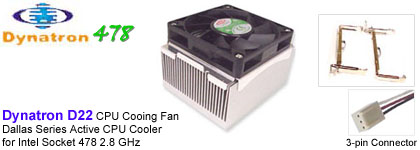

CPU Cooling Fan with Heatsink (Heat-Sink)
 Dynatron (Top Motor) Dallas Series D22
DC1207BM-W Active CPU Cooler
for Intel Socket 478 2.8 GHz
FNC-478-D22-CLIP

Application: IntelŪP4 Socket 478 up to 2.8GHz
Thermal Resistance: ----
Overall Dimension: 83.0 x 71.0 x 55.0 mm
Weight: 323 g

Fan Dimension: 70x70x15 mm
Fan Speed: 3800 ą10% rpm
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: 0.29 A
Power: 3.48 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 28.04 CFM
Noise Level: 35.53 dBA
Air Pressure: 0.125 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 82.0 x 69.0 x 31.0 mm
Heat Sink Material: Aluminum
Heat Sink Pitch: 1.5 mm
Thickness of Fin: ---- mm
Number of Fin: 27
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: 82 mm
