USB2.0 to SATA/IDE Converter
USB 2.0 to 3.5" IDE / ATA / ATAPI
USB 2.0 to 2.5" Notebook IDE
USB 2.0 to SATA (Serial ATA)
GC-USB-SATA-U2SAIDE



Brief

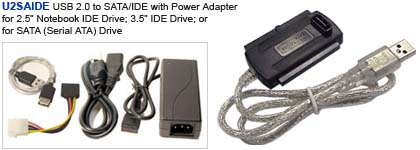

  • USB 2.0 to SATA/IDE Adapter with Power Adapter

Features
  • Plug and Play. Hot swapping.

Specification
  • USB2.0 interface, 480Mbps high speed data transfer rate.
  • Compliant with Gen 1i, and Gen 1m of Serial ATA II electrical specification 1.0
  • Support SATA Spread-Spectrum Clock
  • Support SATA II Asynchronous Signal Recovery (Hot Plug) feature
  • Plug and Play. Hot swapping.
  • Compliant with USB2.0 and USB1.1 standard
  • Compliant with SATA standard
  • Data rate up to 1.5G bps in SATA mode
  • Compliant with USB Mass Storage Bulk only Specification 1.0
  • Support ATA/ATAPI Ultra DMA Mode 0,1,2,3,4,5
  • Support ATA/ATAPI Multi-Word DMA Mode 0,1,2
  • Support ATA/ATAPI PIO Mode 0,1,2,3,4
  • Support ATA/ATAPI Packet command set
  • Support ATA/ATAPI LBA48 addressing mode
  • Accommodate all existing IDE and SATA storage devices such as 2.5 HDD, 3.5 HDD, CD-ROM, CD-RW, DVD-ROM, DVD-RW, DVD+RW.
  • External power adapter for SATA devices

System Requirement
  • PC computer with USB port
  • Support Windows 98SE/ME/2000/XP Operating System

Included

  • Includes USB2.0 TO SATA/IDE Cable, Manual, AC-DC Power Supply 12V & 5VDC for 3.5 & 5.25 devices, One SATA Power Cable, One SATA Cable, and Driver CD.
