Overview:

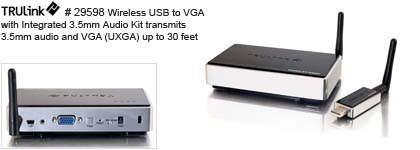

This kit includes all you need to wirelessly stream video and audio from your computer to a remote monitor, projector, or TV. Utilizing Ultra-Wide Band technology, the USB to VGA with Integrated Audio Kit enables in-room wireless connectivity up to 30 feet (line of sight) between the computer and the display.

This single device adapter supports and delivers video and audio wirelessly from a computer to an external display. This highly secure wireless connection is ideal for classroom or conference room presentations or to display audio/video content from your laptop to your home entertainment system.

The Kensington® lock port is identical to those found on laptops to help deter theft in education settings; plus its hard-mountable base enables easy wall, ceiling or furniture mounting. Works in both extended desktop and dual monitor screen modes; supports native mode for playback of high resolution video. Up to six computers can share one wireless display and speaker set*, and one computer can broadcast up to six audio/video displays.**

Please Note: *Requires the purchase of additional USB host adapters (#29578) for the additional computers. **Requires the purchase of additional VGA with Integrated Audio Device adapters (#29599) for additional displays. For more information, read Frequently Asked Questions About Wireless USB, or TruLink® Wireless Solutions.

Connectors: USB A Male, HD15 VGA Female, 3.5mm Female.**

Specifications:

• Supports up to UXGA (1600 x 1200 pixels) and WSXGA (1680 x 1050 pixels) video resolutions with 3.5mm stereo audio up to 30 feet (line of sight)
• Video streaming is supported up to 720p (720p only available at resolution 1024 x 768 pixels or lower)
• Ultra-Wide Band operates in the frequency of 3.1 GHz to 4.8 GHz (WiMedia™ Band Group 1 and 3)
• Certified Wireless USB 1.0 compliant
• WiMedia 1.0 Mac® & 1.1 PHY compliant (Note: Does not mean that it works with Apple® or Mac®).
• Warranty: 1 year
• Color: Black
• Mfr: Cables To Go
• Weight: 2.0lbs

System Requirements:

• With CPU at 1.2 GHz or higher processor clock, Intel® Pentium®/Celeron® family, or AMD-K6®/Athlon™/Duron™ family, or compatible processor
• 512 Mb of RAM
• USB 2.0 port
• 100 Mb of available disk space
• Microsoft® Windows® XP® 32 bit, Vista® 32/64 bit, Windows® 7

Package Contents:

• Wireless USB host adapter for your computer
• Wireless VGA With Integrated Audio adapter for your display
• Two dipole antennas
• One 3ft USB A male to Mini-b male cable
• One 1ft HD15 VGA male to male cable
• One 3ft 3.5mm male to male cable
• One 3ft 3.5mm male to Two RCA male cable
• One 5V 2.5A power adapter
• One USB extender with cradle
• One mounting bracket
• Two self-tapping screws
• Quick Start Guide
• Driver CD
• User Manual

Uses:

Wirelessly transmit 3.5mm audio and display computer images to a remote monitor, projector, or television. Since the wireless VGA and wireless audio is in one housing, this is ideal for PC to TV, conference room projectors, or classroom projectors where the audio and video are in the same location.
