Overview:

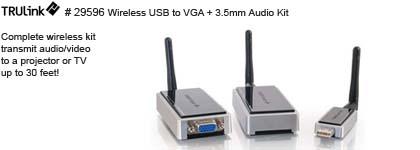

Wirelessly transmit the UXGA/WSXGA video + 3.5mm audio signal to 30 feet (line of sight). This kit includes all you need to wirelessly stream video and audio content from your computer to a remote monitor, projector, or TV. Using Ultra-Wide Band technology, the USB to VGA kit enables in-room wireless connectivity up to 30 feet between the computer and the display.

This highly secure wireless connection is ideal for classroom or conference room presentations or to display content from your laptop to your home entertainment system. Works in both extended desktop and dual monitor screen modes; supports native mode for playback of high resolution video. Up to six computers can share one wireless display and speaker set.*

Please Note: A solution for Windows® 7 is now available. If you currently own or purchase this, you will need to upgrade the firmware and install the driver that is compatible with Windows 7. Upgrade and download instructions are included as a PDF in the download folder. Available drivers are Windows® 32-Bit Installer and Windows® 64-Bit Installer (For Windows® 64 bit Vista® and Windows 7 only). For more information, read Frequently Asked Questions About Wireless USB, or TruLink® Wireless Solutions.

*Requires the purchase of additional USB host adapters (#29578) for the additional computers.

Specifications:

• Operating System Support: Microsoft® XP® 32 bit; Microsoft Vista® 32 or 64 bit
• Operating Range: Up to 30 feet (10 meters)
• PHY Data Rate: 53.3 Mbps, 80 Mbps, 106.6 Mbps, 160 Mbps, 200 Mbps, 320 Mbps, 400 Mbps, 480 Mbps
• Frequency: 3.1 to 4.8 GHz (WiMedia Band Group 1)
• RF Modulation Type: QPSK/DCM
• Number of Channels: 7 (3 FFI + 4 TFI)
• USB Specification: Certified Wireless USB 1.0
• Security: AES 128 bit
• Antenna Type: Omni-directional
• Power Consumption: 3.3 W
• Maximum Output Power: -41.3 dBm/MHz
• Power Adapter: 5 V, 2 A; 100 - 240 VAC; 50 - 60Hz 0.5A
• Interface: USB 2.0 mini B Female for wired association: HD15 Female and 3.5mm stereo audio output
• Video Resolution: Up to UXGA (1600 x 1200 pixels) or WSXGA+ (1680 x 1050 pixels)
• Video Streaming: Up to 720p (for resolutions of 1280 x 720 pixels or lower)
• Screen Mode: Extended and Mirror
• Color Depth: 32 bit True Color
• Association Mode: Pre-Association, Cable Association and PIN Association; stores up to 16 associated hosts
• Native Mode: For playback of high resolution video
• Audio Output: 2 channel DAC output
• Audio Dynamic Range: 95 dB, THD+N is 85 to 91 dB
• Audio Sample Rate: 8 kHz, 16 kHz, 44.1 kHz, to 48 kHz with 16 bit resolution
• Warranty: 1 year
• Color: Black
• Mfr: Cables To Go
• Weight: 2lbs

System Requirements:

Operating System: Windows® XP® or Vista®

Package Contents:

• Wireless USB host adapter for your computer
• Wireless VGA adapter for your display
• Wireless audio adapter for your audio device
• Three dipole antennas
• One 3ft USB A to mini-b cable
• Two AC power adapters
• USB extender with cradle
• Quick start guide
• Driver CD
• User manual

Uses:

Ideal for classrooms, conference rooms, or home uses; especially in situations where the audio and video are in separate locations.  Stream video and audio from the PC to a projector, monitor, or television.   Send a PC's video and sound from a music library, internet video clip, or DVD to an external device.
