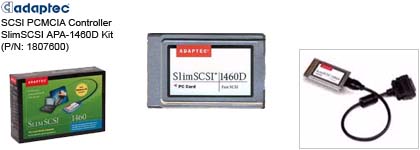

SCSI PCMCIA Controller
Adaptec SlimSCSI 1460
APA-1460D Kit (P/N: 1807600)
C-SCSI-PCM-APA1460DK

Links:

The APA-1460 SlimSCSI host adapter delivers instant, high performance peripheral connections to your PCMCIA portable PC. The SlimSCSI adapter is perfect for quick connections of up to seven external SCSI-2 devices like CD-ROMs (including, single-and multi-session Photo CDs), hard disk drives, scanners, SyQuest, Bernoulli, Floptical, and SCSI tape drives.

Specification:

  • Capacity
     Windows 95/98/NT, 3.x, DOS, OS/2: Up to 7 daisy-chained SCSI devices Windows CE: 1 removable, 1 SCSI hard drive (1 partition) or 1 CD-ROM drive


  • Number of devices
    Up to 7 daisy-chained SCSI devices Windows CE: 1 removable, 1 SCSI hard drive (1 partition) or 1 CD-ROM drive


  • Data Transfer Rate
    Up to 2 MByte/sec PC Card bus rate Up to 10 MByte/sec synchronous burst rate on SCSI bus


  • System Requirements
    Portable PC with PC Card Type II, Type III, or Toshiba Type IV socketsHandheld Portable PC with Type II slotsWorks with Microsoft Windows CE 2.x, Windows 95/98, Windows 3.1, Windows NT (v 3.51, 4.x), MS-DOS (3.x, 4.x, 5.x and 6.x), DR DOS (5 and 6) and OS/2 2.x


  • Package Contents
    SlimSCSI 1460 PC Card-to-SCSI AdapterTwo detachable cables, with low-density SCSI-1 and high-density SCSI-2 connectorsDB-25-pin cable offer inside boxSoftware drivers for Windows CE 2.x, 95, 98, NT and OS/2SlimSCSI 1460 User's GuideEZ-SCSIŽ SoftwareFive year warranty/Registration Card


  • Cable Options
     50-pin High-Density (SCSI-2)
    50-pin Low-Density (SCSI-1)
    DB-25-pin cable offer in kit


  • SCSI Data Format
    8-bit with automatic parity generation


  • Board Dimensions
    PC Card Type II


  • Power Consumption
    0.3 W typical
    0.2 W standby mode
