Wireless PCMCIA Cardbus Network Card ( Laptop / Notebook Networking Adapter )

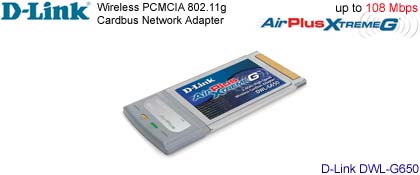

D-Link (Dlink) Air-Plus (AirPlus) XtremeG (Xtreme-G, Extreme-G) DWL-G650
WLS-PCM-DL-G108

Product Features:
* Up to 108Mbps (*)
* Works with 802.11b Devices
* Great for Video Streaming
* 802.11g, 802.11b Compatible
* Increased Security with 802.1X and WPA

Product Description:

D-Link®, an industry leader in networking, introduces another performance breakthrough in wireless connectivity – the AirPlus Xtreme G® series of wireless networking devices. Based on D-Link 108G Technology, these 802.11g compatible devices are capable of delivering maximum wireless signal rates of up to 108Mbps(*) when used together.

The Wi-Fi certified DWL-G650 Wireless Notebook Adapter features extremely high performance as well as industry-wide compatibility. Wi-Fi certification ensures that the DWL-G650 will be compatible with more of your existing network hardware.

Using the DWL-G650 to provide wireless connectivity for your notebook allows you to be more mobile. Access available 802.11b/g networks without the restrictions of phone lines or Ethernet cables. When traveling, feel confident that your notebook will be able to work with the ever increasing number of wireless hotspots.

The DWL-G650 also features D-Link’s eXtended Range (XR) Technology, designed to provide increased wireless signal range as well as fewer dead spots (**). When used with XR-enabled access point, experience wireless coverage in areas where you were previously unable to get reception.

With an included configuration utility, setup for your DWL-G650 is a straightforward process. The utility keeps track of your most frequently used networks, so you can rejoin them without hassle. The DWL-G650 also supports the latest security features such as WPA and 802.1x, making your wireless connection secure.

With its speed, security, and range, the DWL-G650 is the ideal wireless client adapter for your most demanding notebook computer users. Experience the freedom of wireless to the Xtreme with the DWL-G650.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

** All devices in the wireless network must be enabled with D-Link Extended Range Technology

 Specifications:

Standards
* IEEE 802.11
* IEEE 802.11b
* IEEE 802.11g

Bus Type
* 32-bit Cardbus

Wireless Signal Rates*
With Automatic Fallback
* D-Link 108G: 108Mbps
* 54 Mbps
* 48 Mbps
* 36 Mbps
* 24 Mbps
* 18 Mbps
* 12 Mbps
* 11 Mbps
* 9 Mbps
* 6 Mbps
* 5.5 Mbps
* 2 Mbps
* 1 Mbps

Security
* 64-, 128-WEP
* 802.1x
* WPA—Wi-Fi Protected Access
* WPA —PSK (Pre-Shared Key)

Media Access Control
* CSMA/CA with ACK

Frequency Range
* 2.4 GHz to 2.462 GHz

Wireless Signal Range (*)
* Indoors: Up to 328 feet (100 meters)
* Outdoors: Up to 1,312 feet (400 meters)

Power Consumption
* PowerSave mode = 28 mA
* Standby mode = 4.66 mA
* Transmit mode = 248 mA

Modulation Technology
* Orthogonal Frequency Division Multiplexing (OFDM)
* Complementary Code Keying (CCK)

Receiver Sensitivity (*)
* 54 Mbps OFDM, 10% PER, -68 dBm)
* 48 Mbps OFDM, 10% PER, -68 dBm)
* 36 Mbps OFDM, 10% PER, -75 dBm)
* 24 Mbps OFDM, 10% PER, -79 dBm)
* 18 Mbps OFDM, 10% PER, -82 dBm)
* 12 Mbps OFDM, 10% PER, -84 dBm)
* 11 Mbps CCK, 8% PER, -82 dBm)
* 9 Mbps OFDM, 10% PER, -87 dBm)
* 6 Mbps OFDM, 10% PER, -88 dBm)
* 5.5 Mbps CCK, 8% PER, -85 dBm)
* 2 Mbps QPSK, 8% PER, -86 dBm)
* 1 Mbps BPSK, 8% PER, -89 dBm)

Wireless Transmitter Power
* 15 dBm ± 2dB

Internal Antenna Type
* Dual Antenna Diversity Switching

Operating Temperature
* 32°F to 131°F ( 0°C to 55°C)

Humidity
* 95% maximum (non-condensing)

Dimensions
* L = 4.64 inches (114.3 mm)
* W = 2.13 inches (54 mm)
* H = 0.34 inches (8.7 mm)

Weight
* 0.12 lbs (55 g)

Certifications
* FCC part 15b

Warranty
* D-Link manufacturer's limited 3-year warranty, subject to change without prior notice.

* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
