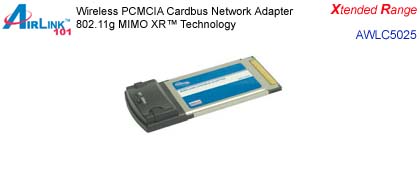

Wireless PCMCIA Cardbus Network Card ( Laptop / Notebook Networking Adapter )
AirLink 101 AWLC5025 802.11g MIMO XR™ ( Xtended Range ) Technology
WLS-PCM-AR-MIMO

* MIMO XR™ architecture improves wireless transmission over long distances
* Four built-in smart antennas for higher gain
* Fully compatible with existing 802.11g/b products

Extend the range of your current Airlink101™ or other wireless network. The new MIMO XR™ 802.11g Wireless Cardbus Adapter features improved signal strength and range using the MIMO XR™ architecture. The AWLC5025 supports up to 600% higher throughput coverage than standard 11g devices, while eliminating dead spots and improving vertical signal transmission for multi-story buildings.

Works best with Airlink101™ MIMO XR™ routers (AR525W)

Specifications:

Standards IEEE 802.11g/b
Frequency Band 2.4 GHz
Protocol Support TCP/IP, IPX, NetBEUI
Antenna Type 4 built-in smart antennas
Interface Cardbus
OS Compatibility Windows 98SE/2000/ME/XP
Transmitted Power 11g: Max. +15 dBm, 11b: Max. +18 dBm
Security 64, 128-bit WEP encryption, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
Dimensions 60 x 44.5 x 5 mm
Safety Approvals FCC, CE

Theoretical maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. MIMO XR™ is a registered trademark of Ralink Technology Corporation.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
* 300 Mhz processor or better
* Windows 98SE / 2000 / ME / XP
* 64MB RAM
* Available Cardbus slot

Package Contents
* MIMO XR™ 802.11g Wireless Cardbus Adapter
* Quick Installation Guide
* Manual CD
