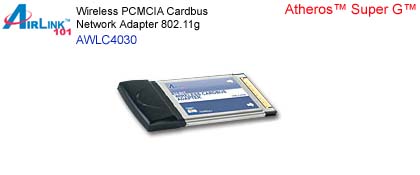

Wireless PCMCIA Cardbus Network Card ( Laptop / Notebook Networking Adapter )
Atheros™ Super G™ up to 108Mbps AirLink 101 AWLC4030
WLS-PCM-AR-G108

* IEEE 802.11g/b and Super G™ supporting up to 108Mbps data rates
* Supports use of WPA and 802.1x for extra security
* Up to 10x faster than 802.11b with new Super G™ technology

Add wireless capabilities to your current wireless-capable device. Compatible with products using Atheros™ Super G™ technology for 108Mbps. Wireless encryption data with 64/128/152-bit WEP. Also backward compatible with 802.11b.

Specifications:

Standards Wireless: IEEE 802.11g/b, Atheros™ Super G™
Data Rate Atheros™ Super G™: up to 108 Mbps*, 802.11g: up to 54Mbps*, 802.11b: up to 11Mbps*
Chipset Atheros™
Transmit Power 18dBm @ 11Mbps, 14~15dBm @ 54/108Mbps
Antenna Type Integrated antennas with dual diversity function
Functions Supports ad-hoc and infrastructure modes. Power save mode.
Security WEP 64/128/152-bit encryption, WPA-PSK and WPA-EAP, 802.1x (EAP-MD5 and EAP-TLS, EAP-TTLS and EAP-PEAP
Operating Voltage 3.3V DC
Dimensions 110 x 80 x 20 mm (L x W x H)
Certifications FCC and CE

* Super G™ technology (108Mbps) can only be obtained when using products with Atheron Super G™ chipset.

* Theoretical maximum wireless signal rate based on Atheros™ Super G™ and IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, mix of wireless products used, radio frequency interference (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate.

Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.

Copyright ©2006 Airlink101™

System Requirements
Windows® 98SE/ME/2000/XP system with at least 300MHz processor, 32MB of memory, and available cardbus slot.

Package Contents
* Cardbus device
* Quick Installation Guide
* CD/User Manual
