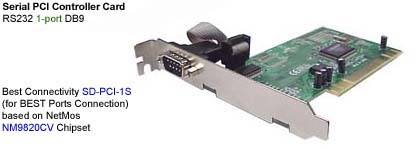

PCI 1-port Serial Control Card
SD-PCI-1S Single Port PCI Serial
based on NetMos Chipset NM9820CV
with 16C550 UART Hi-Speed
C-S-PCI-1-DB9-SD

Features:
> Plug & Play - Automatically selects IRQ and I/O address
> Supports PCI IRQ sharing

Specification:
> PCI Specification Revision 2.1 compliant
> Compatible with standard 16C550 UART with 16 byte transmit-receive FIFO
> Fast data rates up to 1 Mbytes/sec
> DB9 serial port connector x 1
> Pin header serial port connector x 1
> Approval: FCC, CE

System Requirement:
> PC computer with one 32-bit PCI slot
> MS Windows 98SE/Me/2000/XP/NT4.0, Linux, DOS

Package Includes:
> PCI to Serial 1-port host controller card
> User's manual
> Software driver disc x 1
