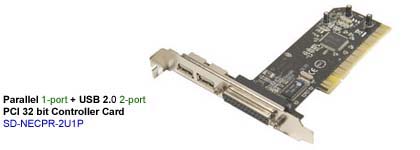

Parallel + USB PCI 32-bit Control Card
SD-NECPR-2U1P
DB25 Printer Port Prolific Chipset
+
USB 2.0 2-port NEC Chipset
C-P1U2-PCI-SD-NECPR
Brief:
> PCI 32-bit High Speed USB 2.0 2x Ports and 1x Parallel Port Combo
Card
Specification:
> PCI USB 2.0
(NEC Chipset) + Parallel (Prolific Chipset) Port Card
> 2 x USB 2.0 Ports + 1 x IEEE1284 DB25 (Female) Parallel Port
> Support PCI IRQ sharing
> Fully Plug-n-Play compatible
> Support Device Hot Plug and Wake-Up
> Compliant with Open Host Controller Interface Specification for USB
Rev 1.0a
> Compliant with Enhanced Host Controller Interface Specification for
USB Rev 1.0
> Compliant with PCI Local Bus Specification 2.2
> Compliant with Universal Serial Bus Specification Revision 2.0
> Support PCI-bus Power Manager Interface Specification release 1.1
> Support high-speed (480Mbps), full-speed (12Mbps) and low-speed
(1.5Mbps) data transfer rate.
> Support up to 127 devices
> Backward compatible to USB Specification 1.1
> Compliant with USB Device Class Definition for Printing Devices
version 1.0
> Compliant with IEEE1284-1994 specification for Bi-directional Parallel
Peripheral Interface
> Truly bi-directional communication between PC and printer
> Work with any IEEE1284 compliant printers, scanners and other IEEE1284
compliant peripherals
System Requirement:
> computer with PCI Slot
> Suppport Windows 98SE / ME / 2000 / XP / Server 2003 / Vista
Package Includes:
> Includes USB2.0 + Parallel Port Card, CD Driver, and User manual
 |
