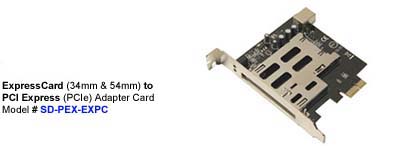

ExpressCard 34mm/54mm
to PCI Express Adapter Card
Model # SD-PEX-EXPC
C-EX34-PCE-SD

Brief:
> ExpressCard to PCI-Express Conversion Card

Specification General:
> Convert ExpressCard to PCI-Express
> Support ExpressCard base on PCI-Express and USB 2.0 Signaling
> Support 54/34 mm ExpressCard
> 1-Lane (x1) PCI Express with Transfer Rate 2.5GB/s Full Duplex Channel
> Compliant with PCI-Express Revision 1.0a
> One USB 2.0 port connection needed from the motherboard for fully ExpressCard compatible
> Fully plug & play
> Works with Microsoft Windows 2000/XP/Server 2003/XP 64-bit/Vista

System Requirement:
> PC computer with PCI-Express (X1) Slot
> MS Windows 98SE/Me/2000/XP/2003 Server/XP 64-bit/Vista

Package Includes:
> ExpressCard to PCI-Express Conversion card
> USB Cable
> User's manual
