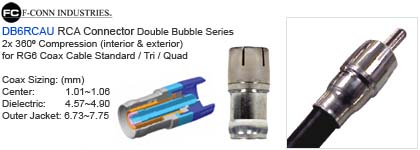

RCA Connector for RG6 Coax Cable (Universal)
DB6RCAU F-Conn Double-Bubble series
2x 360º Compression (interior & exterior)
for RG6 Coaxial Cable Standard / Tri / Quad
MP-RCA-PW-RG6-DBu

DB6RCAU is the Universal RCA type connector that fits standard, tri-shield, and quad-shield RG6U coaxial cable.

Specifications:

• 75 Ohm Construction
• DC-100 MHz > 36 dB Return Loss < 1.03 VSWR
• DC-200 MHz > 35 dB Return Loss < 1.04 VSWR
• DC-300 MHz > 33 dB Return Loss < 1.06 VSWR
• Cable Pullout Force Exceeding 65 in/lbs.
• Body Material Brass
• Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max
Center .0399 ~ .0418
Dielectric .180 ~ .193
Outer Jacket .265 ~ .305

Coax Sizing (mm) Min ~ Max
Center 1.01 ~ 1.06
Dielectric 4.57 ~ 4.90
Outer Jacket 6.73 ~ 7.75

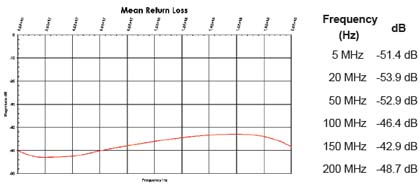

Lower return loss (dB) equates to less reflection through the connector while maintaining
signal strength .
