Shielded RJ45 8P8C Modular Plug
 AMP Tyco
EMT (Electro Magnetic Technology) & VHP (Very High Performance)
MP-8P8CS-xxx

Link(s):

Links:

Part Numbers & Description:

Description Wire Insulation O.D. Cable Jacket O.D. P/N: Package (per Box) Use with
Tool
500 pcs 100 pcs 25 pcs

Cat.6
8-Position

23~24
AWG

 Stranded

0.035 in - 0.043 in
(0.89 mm - 1.09 mm)

 0.20 in - 0.24 in
(5.0 mm - 6.0 mm) 		5-1375202-2 5-1375202-3 5-1375202-4 790163-1
Solid 5-1375204-2 5-1375204-3 5-1375204-4
Stranded 0.24 in - 0.28 in
(6.0 mm - 7.0 mm) 		5-1479184-2 5-1479184-3 5-1479184-4 790163-5
Solid 5-1479185-2 5-1479185-3 5-1479185-4

Introduction:

The EMT (Electro Magnetic Technology) Modular Plug provides best shield performance in the market. Using a corresponding cable, the EMT terminated patchcords provide a channel performance up to Link Class E (ISO/IEC 11801 and EN 50173).

Features & Benefits:

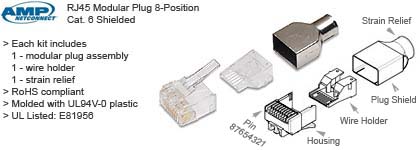

  • Each kit includes the following required components:

    • 1 - modular plug assembly

    • 1 - wire holder

    • 1 - strain relief

  • RoHS compliant

  • Molded with UL94V-0 plastic

  • UL Listed: E81956

Product Facts:

  • 8 pos. Shielded Modular Plug acc. IEC 603-7

  • 360° Shield contact to the cable

  • Shield body covers plug completely

  • Load bar (wire manager) ensures fast, easy and reliable high quality terminations

  • Field & factory termination supported by application tooling

Modular Plug - Pin Assignment: ( for reference only )
