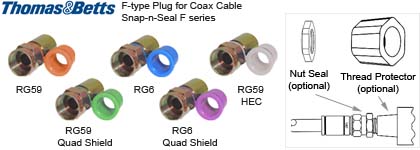

Thomas and Betts / LRC
Snap-N-Seal "F" Connectors
for Coax Cable (Coaxial Wire)
MP-FT-SNS-RGxxx-xxx
(RGxxx-xxx
Cable Type & Ring Color)
download
Snap-n-Seal Installation Guide for F series
download
Snap-n-Seal catalogue
Products:
|
P/N |
Sleeve |
Cable |
Sleeve ID |
Post
ID |
Note |
|
SNS59 |
Orange |
RG59 |
Double |
.154 |
.253 |
xxx |
|
SNS59NS |
Orange |
RG59 |
Double |
.154 |
.253 |
+ Nut Seal |
|
SNS59TP275 |
Orange |
RG59 |
Double |
.154 |
.253 |
+ 0.275" Thread Protector |
|
SNS59TP450 |
Orange |
RG59 |
Double |
.154 |
.253 |
+ 0.450" Thread Protector |
|
SNS6PLA |
Orange |
RG6 |
PLA |
.191 |
.253 |
xxx |
|
SNS59QS |
Green |
RG59 |
Quad |
.154 |
.275 |
xxx |
|
SNS59QSNS |
Green |
RG59 |
Quad |
.154 |
.275 |
+ Nut Seal |
|
SNS59QSTP275 |
Green |
RG59 |
Quad |
.154 |
.275 |
+ 0.275" Thread Protector |
|
SNS59QSTP450 |
Green |
RG59 |
Quad |
.154 |
.275 |
+ 0.450" Thread Protector |
|
SNS59HEC |
White |
RG59 |
HEC |
.154 |
.290 |
xxx |
|
SNS6 |
Blue
|
RG6 |
Double |
.191 |
.290 |
xxx |
|
SNS6NS |
Blue
|
RG6 |
Double |
.191 |
.290 |
+ Nut Seal |
|
SNS6TP275 |
Blue
|
RG6 |
Double |
.191 |
.290 |
+ 0.275" Thread Protector |
|
SNS6TP450 |
Blue
|
RG6 |
Double |
.191 |
.290 |
+ 0.450" Thread Protector |
|
SNS6QS |
Purple |
RG6 |
Quad |
.191 |
.315 |
xxx |
|
SNS6QSNS |
Purple |
RG6 |
Quad |
.191 |
.315 |
+ Nut Seal |
|
SNS6QSTP275 |
Purple |
RG6 |
Quad |
.191 |
.315 |
+ 0.275" Thread Protector |
|
SNS6QSTP450 |
Purple |
RG6 |
Quad |
.191 |
.315 |
+ 0.450" Thread Protector |
Snap-N-Seal® “F”
Series Male Environmentally Sealed Connectors for Series 59 & 6 Cables
LRC Snap-N-Seal® connectors are environmentally sealed to protect drops from
harsh environments. Through a unique 360° compression process, Snap-N-Seal®
connectors also offers the signal leakage protection required for today’s
systems.
Design Advantages
• Quad-sealed system prevents moisture from migrating into the
connection.
• Connectors manufactured from high quality 360 brass, cadmium plated with
iridescent chromate coating for maximum corrosion resistance.
• Design incorporates UV resistant plastic and O-rings providing a reliable,
environmentally sealed product.
• 1/4”-1/4” cable preparation is standard.
• Multiple tool options make installation fast, easy and reliable.
• Product number is permanently stamped on connectors for easy
identification.
Physical
• Nut, Post and Collar: Brass CDA360
• Nut and Collar Finish: Cadmium Plated with Iridescent Chromate Coating
• Post Finish: Tin Plated
• O-Ring: Ethylene Propylene
Electrical
• Return Loss: ≥ -30 dB up to 1 GHZ Typical
• Insertion Loss: ≤ -0.18 dB up to 1 GHZ Typical
• RFI Shielding: -95 dB Typical (60% Bonded Foil Cable)
Mechanical
• Cable Retention: 40 LBS. MIN. Complies to SCTE IPS-SP-404
Environmental
• Temperature Rating: -40° F (-40°C) to 140° F (60°C) |
