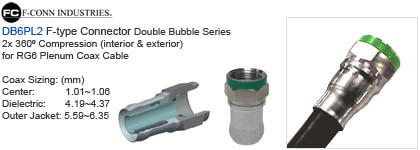

F-type Connector for RG6 Coax Cable (Universal)
DB6PL2 F-Conn Double-Bubble series
2x 360º Compression (interior & exterior)
for RG6 Plenum Coaxial Cable
MP-FT-PW-RG6-DBpl2

DB6PL2 is the Plenum "F" type connector that fits most RG6 Plenum coaxial cable.

Specifications:

• 75 Ohm Construction
• DC-1 GHz > 31 dB Return Loss < 1.05 VSWR
• DC-2 GHz > 26 dB Return Loss < 1.09 VSWR
• DC-3 GHz > 21 dB Return Loss < 1.18 VSWR
• Cable Pullout Force Exceeding 65 in/lbs.
• Body Material Brass
• Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max
Center .0399 ~ .0418
Dielectric .165 ~ .172
Outer Jacket .220 ~ .250

Coax Sizing (mm) Min ~ Max
Center 1.01 ~ 1.06
Dielectric 4.19 ~ 4.37
Outer Jacket 5.59 ~ 6.35

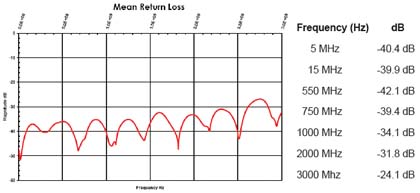

Lower return loss (dB) equates to less reflection through the connector while maintaining
signal strength .
