Butt
Splice

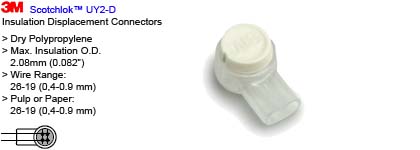

3M
Scotchlok™
UY2-D
IDC Butt Connector
Splice-Butt-3M-UY2-D
Link(s):
Introduction:
The small size of the UY2/UY2-D, solvent
resistant connectors, reduce the splicing bundle O.D. to a
minimum. Their two ports accept two solid copper conductors that
can be of different wire gauges. The connector is filled with a
sealant to provide moisture resistance. In addition, the UY2
connector is available in a dry version, UY2-D connector. RUS
Listed.
-
The UY2’s two ports accept any two solid
copper conductor combinations of 19-26 AWG (0.9 mm - 0.4 mm)
filled or air core cable with a maximum insulation O.D. of
.082" (2.08 mm).
-
The wires joined can be of different wire
gauges.
-
Factory inserted sealant insulates the
connections, protects against corrosion, and seals out
moisture.
-
Available in a dry version, the UY2-D.
-
The UY2 and UY2-D are available in box,
bulk, bin and cartridge.
Features:
|
Features |
Dry
Polypropylene RUS Listed |
|
Max.
Insulation O.D. |
2.08mm
(0.082") |
|
PIC-Unfilled
& PIC-Filled |
26-19
(0.4-0.9 mm) |
|
Pulp
or Paper |
26-19
(0.4-0.9 mm) |
|
Suggested 3M Tool |
xxx |
Specification:
|
Cable
Type |
PIC,
PULP, PAPER |
|
China
RoHS - Below MCV |
Yes |
|
Composition |
Dry |
|
Connector Type |
Butt/2
Conductor |
|
EU
RoHS Compliant |
Yes |
|
Flame
Retardant |
No |
|
Insulation Outside Diameter |
0.082
Inch |
|
Operating Temperature Range |
-40 to
285 Degree Fahrenheit |
|
Product Family |
IDC
for Communications Applications |
|
RUS
Listed |
Yes/BA |
|
