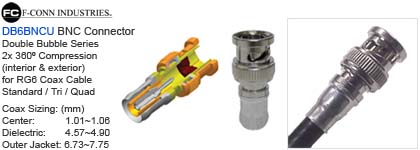

BNC Connector for RG6 Coax Cable (Universal)
DB6BNCU F-Conn Double-Bubble series
2x 360º Compression (interior & exterior)
for RG6 Coaxial Cable Standard / Tri / Quad
MP-BNC-PW-RG6-DBu

DB6BNCU is the Universal "BNC" type connector that fits standard, tri-shield, and quad-shield RG6U coaxial cable.

Specifications:

• 75 Ohm Construction
• DC-1 GHz > 30 dB Return Loss < 1.07 VSWR
• DC-2 GHz > 25 dB Return Loss < 1.10 VSWR
• DC-3 GHz > 24 dB Return Loss < 1.16 VSWR
• Cable Pullout Force Exceeding 65 in/lbs.
• Body Material Brass
• Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max
Center .0399 ~ .0418
Dielectric .180 ~ .193
Outer Jacket .265 ~ .305

Coax Sizing (mm) Min ~ Max
Center 1.01 ~ 1.06
Dielectric 4.57 ~ 4.90
Outer Jacket 6.73 ~ 7.75

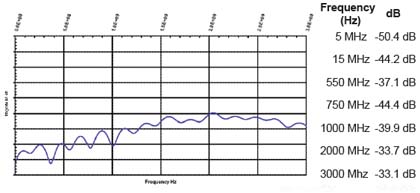

Lower return loss (dB) equates to less reflection through the connector while maintaining
signal strength .
