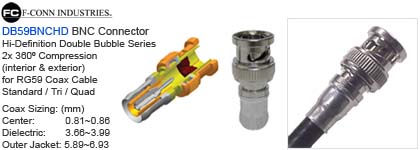

BNC Connector for RG59 Coax Cable (Universal)
DB59BNCHD F-Conn High Definition Double-Bubble series
2x 360º Compression (interior & exterior)
for RG59 Coaxial Cable Standard / Tri / Quad
MP-BNC-PW-RG59-DBhd

DB59BNCHD is the Universal High-Definition BNC Broadcast connector that fits standard, tri-shield, and quad-shield RG59U coaxial cable.

Specifications:

• 75 Ohm Construction
• DC-1 GHz > -35 dB Return Loss < 1.04 VSWR
• DC-2 GHz > -29 dB Return Loss < 1.07 VSWR
• DC-3 GHz > -32 dB Return Loss < 1.07 VSWR
• Cable Pullout Force Exceeding 65 in/lbs.
• Body Material Brass
• Body Material (Plating) Nickel

Coax Sizing (inches) Min ~ Max
Center .0317 ~ .0339
Dielectric .144 ~ .157
Outer Jacket .232 ~ .273

Coax Sizing (mm) Min ~ Max
Center .81 ~ .86
Dielectric 3.66 ~ 3.99
Outer Jacket 5.89 ~ 6.93

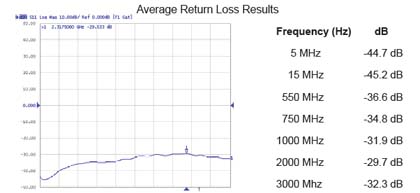

Lower return loss (dB) equates to less reflection through the connector while maintaining
signal strength .
