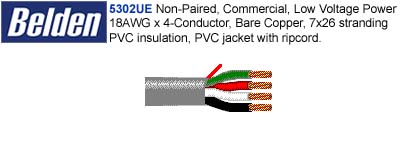

Belden 5302UE
 Non-Paired Commercial Applications, Low Voltage Power Cable
18 AWG Stranded (7x26) BC (Bare Copper) Conductors
PVC insulation, PVC Jacket with Ripcord
CB-NP-18X4-xxx-B

Description:
> 18 AWG bare copper conductors, PVC insulation, PVC jacket with ripcord. Sequential footage marking every two feet.

PHYSICAL CHARACTERISTICS:

CONDUCTOR:
> Number of Conductors: 4
> Total Number of Conductors: 4
> AWG: 18
> Stranding: 7x26
> Conductor Material: BC - Bare Copper

INSULATION:
> Insulation Material: PVC - Polyvinyl Chloride
> Nom. Insulation Wall Thickness: .010 in.

OVERALL CABLING:
> Overall Cabling Lay Length: 4 in.
> Overall Cabling Twists/ft.: 3
> Overall Cabling Color Code Chart: Black, Red, White, Green

OUTER SHIELD:
> Outer Shield Material Unshielded

OUTER JACKET:
> Outer Jacket Material: PVC - Polyvinyl Chloride
> Outer Jacket Nominal Wall Thickness: .015 in.
> Outer Jacket Ripcord: Yes

OVERALL NOMINAL DIAMETER:
> Overall Nominal Diameter: .188 in.

MECHANICAL CHARACTERISTICS:
> Operating Temperature Range: -20°C To +75°C
> UL Temperature Rating: 75°C
> Bulk Cable Weight: 29.9 lbs/1000 ft.
> Max. Recommended Pulling Tension: 89.6 lbs.
> Min. Bend Radius (Install): 1.9 in.

APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:

APPLICABLE STANDARDS:
> NEC/(UL) Specification: CMR
> NEC Articles: 800
> CEC/C(UL) Specification: CMG
> EU CE Mark (Y/N): Yes
> EU RoHS Compliant (Y/N): Yes
> EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005

FLAME TEST:
> UL Flame Test: UL1666 Vertical Shaft
> C(UL) Flame Test: FT4

PLENUM/NON-PLENUM:
> Plenum (Y/N): N
> Plenum Number: 6302UE

ELECTRICAL CHARACTERISTICS:
> Nom. Capacitance Conductor to Conductor @ 1 KHz: 30 pF/ft
> Nom. Conductor DC Resistance @ 20 Deg.: C 6.5 Ohms/1000 ft
> Max. Operating Voltage - UL: 300 V RMS
> Max. Recommended Current: 4 Amps per conductor @ 25°C

PUT-UPS AND COLORS:

5302UE 008500
> Description: 4 #18 SRPVC FRPVC
> Put-Up (ft.): 500
> Ship Weight (lbs.): 16
> Jacket Color: GRAY

5302UE 008C250
> Description: 4 #18 SRPVC FRPVC
> Put-Up (ft.): C250
> Ship Weight (lbs.): 7.5
> Jacket Color: GRAY

5302UE 008U500
> Description: 4 #18 SRPVC FRPVC
> Put-Up (ft.): U500
> Ship Weight (lbs.): 16.5
> Jacket Color: GRAY

5302UE 0081000
> Description: 4 #18 SRPVC FRPVC
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 32
> Jacket Color: GRAY
> Notes: C

5302UE 008U1000
> Description: 4 #18 SRPVC FRPVC
> Put-Up (ft.): U1000
> Ship Weight (lbs.): 32
> Jacket Color: GRAY

> Notes: C = CRATE REEL PUT-UP.

Revision Number: 1 Revision Date: 09-12-2005
© 2005 Belden Wire & Cable Company
All Rights Reserved.
