Internet Video Camera
Wireless-G Internet Video Camera

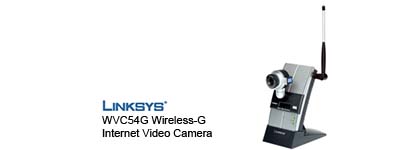

Linksys WVC54G Wireless Security Camera
CAM-IP-LS-WVC54G


The Linksys Wireless-G Internet Video Camera sends live video with sound through the Internet to a web browser anywhere in the world! This compact, self-contained unit lets you keep track of your home, your kids, your workplace -- whatever's important to you.

Unlike standard "web cams" that require an attached PC, the Internet Video Camera contains its own web server, so it can connect directly to a network, either over Wireless-G (802.11g) networking, or over 10/100 Ethernet cable. The advanced MPEG-4 video compression produces a high-quality, high-framerate, up to 640x480 audio/video stream.

The Internet Video Camera's unique form-factor and wireless connectivity allows you to mount it on a wall nearly anywhere, or slip it into its included stand for desktop use. Once it's connected to your home network, you can "see what it sees" from any PC in the house, while the audio/video stream is secured from the outside world, hidden behind your Router. If you want the video to be visible from outside your home network, you can open an appropriate port on the Router, and then create password protected accounts to manage access to the camera, or leave it wide open for the world to see. The SoloLink domain service (trial sign-up included) lets you access your camera using an easy-to-remember "name", even if your home Internet connection uses a dynamic IP address.

You can also turn on Security Mode, which tells the camera to send a message with a short video attached to up to three email addresses whenever it detects motion in its field of view. You can then log onto the live video stream if the situation warrants. The included Viewer & Recorder utility lets you record the audio/video stream to your local hard drive, "live" or on a predetermined schedule.

Let the Linksys Wireless-G Internet Video Camera help you keep tabs on your world.

> Sends a high-quality live audio/video stream to your network wirelessly over 802.11g -- viewable from anywhere
> Built-in stand-alone web server, no PC necessary
> Security Mode automatically sends email alerts with video clips upon motion detection
> Supports up to four simultaneous remote users

Features
> Integrated web server - view from most web browsers
> Access the camera from anywhere in the world via the Internet
> Supports enhanced MPEG-4 compression
> View video from your Wireless-G or wired ethernet network
> Connect an external Microphone or use the Built-in microphone for audio monitoring
> Easily identify your camera's IP address from the built-in LCD display
> Includes easy to use Linksys Viewer & Recorder utility with Snapshot feature
> Motion Detection and E-mail notification
> Create a database for user authentication
> Supports resolution of up to 640x480 pixels
> Time Stamp & Text Overlay
> Connect up to 4 users simultaneously
> Supports Linksys SoloLink DDNS Service for dynamic IP connection
> Multi-platform support - TCP/IP, SMTP (E-Mail), HTTP, DHCP
> Windows-based Setup Wizard for easy setup
> WEP encryption up to 128-bit

Specifications:
> Model Number: WVC54G
> Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
> Ports: One 10/100 Auto Crossover (MDI/MDI-X) port, Power port, 2.5mm MIC IN
> Protocols: TCP/IP, HTTP, DHCP, NTP, SMTP, UPnP (Discovery only)
> Buttons: One Reset Button
> Cabling Type: RJ-45
> Indicators LEDS: Ready, Act/Link, Ethernet, Wireless; LCD Display of IP Address
> Security features: User Authentication, WEP Encryption, Motion Detection
> WEP key bits: 64/128 Bit
> Image Sensor: CMOS, VGA, 644x484 pixels
> Lens: Fixed Focus
> Resolution: 640x480, 320x240, 160x128
> Relative: Illumination 65%
> Effective Focus: 4.48mm
> Sensitivity: F1.5
> Field of View: 57 degrees
> Compression Algorithm: MPEG-4
> Record File Format: ASF
> Brightness: Auto/Manual Adjustment
> Audio: G.726 8K

Environmental
> Dimensions: 3.35" x 6.10" x 3.15"
> W x H x D: (85 mm x 155 mm x 80 mm)
> Unit Weight: .53 lbs. (0.24 kg)
> Power: 5V DC External
> Certifications: FCC Class B, CE Mark
> Operating Temp.: 0ºC to 40ºC
> Storage Temp.: -10ºC to 70ºC
> Operating Humidity: 10% to 85% Non-Condensing
> Storage Humidity: 5% to 90% Non-Condensing
