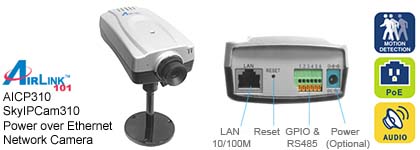

IP Network Camera
AICP310 AirLink (AirLink 101) SkyIPCAM310
Power over Ethernet PoE Security Camera
CAM-IP-AR-AICP310

The SkyIPCam310 supports Power over Ethernet, IEEE 802.3af. With it’s user friendly GUI and setup, you will be able to have peace of mind where ever you are.

Features:
> High frame rate at 640 x 480 resolution to deliver clear full motion video
> Supports PoE (Power over Ethernet) standard, IEEE 802.3af
> Motion detection with 2 adjustable windows
> Built-in internal microphone
> Remote access from web browser for live image viewing and audio capture
> Supports both JAVA applet and ActiveX Plug-in

Specifications:

 Camera:
> Sensor Resolution : 640 x 480 pixel
> Sensor Type : Color CMOS Sensor
> Lens : f: 6.0 mm, F: 1.8
> Lens Type : CS Mount

Video:
 > Image compression : MJPEG
> VGA (640 x 480) : 30fps
> QVGA (320 x 240) : 30fps
> QQVGA (160 x 120) : 30fps
> Auto exposure control
> Automatic white balance

 Audio
 > Audio Input : Internal MIC (mono)

 Communication:
> LAN : 10/100Mbps RJ-45
> Protocol : HTTP Server, TCP/IP, UDP, ARP, ICMP, PPPoE, FTP Client, SMTP Client, DDNS Client, NTP, Samba Client, DNS Client, DHCP Client, UPnP

 External Pan/Tilt Support:
> RS-485

GPIO:
 > 1 x Generic Input, 1 x Generic Output

 Power:
Supplied by either one of the following power sources:
1) 5VDC/2.5A Power Adapter
2) Power over Ethernet, IEEE 802.3af

 Power Consumption:
> 6 watts max

 LEDs:
> Power LED
> Link LED

Operation Environment:
> Temperature: 0°C ~ 40°C (32°F ~ 104°F)
> Humidity: 5% ~ 95% non-condensing

 Certification:
> FCC, CE

System Requirements:
> Windows 2000 / XP / Vista

Package Contents:
> Power over Ethernet Network Camera
> Power Adapter
> Camera Stand
> Ethernet Cable
> Utility CD
> Quick Installation Guide

Photos of product may not reflect actual content. Actual data throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.
