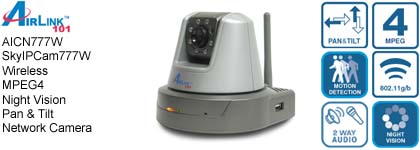

CAM-IP-AR-AICN777W Wireless IP Camera Network Security Webcam (Internet Camera) AirLink (Air-Link-101) SkyIPCam777W AICN777W

IP Network Camera
AICN747W AirLink (AirLink 101) SkyIPCAM777W
MPEG4, Night Vision Pan & Tilt Wireless Security Camera
CAM-IP-AR-AICN777W

The SkyIPCam777W Wireless MPEG4 Night Vision Pan/Tilt Network Camera supports real-time high quality video and audio over the Internet with built-in omni-directional microphone. It supports 2-way audio transmission by adding a powered speaker (not included). You can remotely hear & talk to people at your camera view. It also supports MPEG4 & MJPEG dual codec. You can view live video from web browser or a 3G mobile phone/PDA. The SkyIPCam777W Supports FTP uploading and email notification with images triggered by motion detection or by Schedule.

Specifications:
> Image Sensor
   * Sensor Type : 1/4” Color CMOS Sensor
   * Sensor Resolution : 640 x 480 pixel
   * Minimum Illumination : 0.5 Lux
> Infrared LEDs
   * Triggered by Auto Light Sensor
> Lens
   * Lens Type : Board Lens
   * View Angle (Diagonal) : 64 degree
> Video
   * Image Compression : MPEG4 / MJPEG / 3GPP
   * Auto Exposure Control : Yes
   * Auto White Balance : Yes
   * Auto Gain Control : Yes
   * Image Resolution and Frame Rate:
     ~ VGA (640 x 480): 30fps
     ~ QVGA (320 x 240): 30fps
     ~ QQVGA (160 x 120): 30fps
> Audio
   * Input : Built-in Microphone
   * Output: External Connector for Mono Speaker
   * Codec : PCM / AMR
> Communication
   * Ethernet : one 10/100Mbps RJ-45
   * Wireless : IEEE 802.11b/g
   * Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
> Pan/Tilt
   * Pan : +165° ~ -165°
   * Tilt : +90° ~ -15°
> Interface & Buttons
   * DC Power Connector
   * Ethernet Cable Connector
   * GPIO Connector (1 In & 1 Out)
   * USB 1.1 port with dismount button
   * Audio-out Connector
   * External Antenna Connector
   * Reset Button
> Antenna
   * External Dipole Detachable Antenna
> LEDs
   * Power LED : Orange Color
   * Link/Act. LED : Green Color
> Power
   * Input : AC 100-240V 50-60Hz
   * Output : DC 12V / 1.5A
   * Power Consumption : 10 watts Max.
> Environment
   * Operating Temperature : 0°C ~ 45°C (32°F ~ 113°F)
   * Operating Humidity : 20% ~ 85% non-condensing
   * Storage Temperature : -15°C ~ 60°C (5°F ~ 140°F)
   * Storage Humidity : 0% ~ 90% non-condensing
> Certification
   * FCC, CE

System Requires:
> OS Supported : Windows 2000/XP/Vista
> Browser : Internet Explorer 6.0 or above, Apple Safari 2 or above, Mozilla Firefox 2.00 or above
> 3G Viewing :
   1) The 3G device must support Real Time Streaming Protocol (RTSP)
   2) The 3G device must support QuickTime™, RealPlayer™ or VLC Media Player
   3) The 3G device must have 3G mobile Internet access subscription

Package Contents:

> SkyIPCam777W Wireless MPEG4 Night Vision Pan/Tilt Network Camera
> Antenna
> Wall Mount Kit
> GPIO Connector
> Power adapter
> Ethernet cable
> Utility CD
> Quick installation guide

Photos of product may not reflect actual content. Actual data throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.
