IP Network Camera

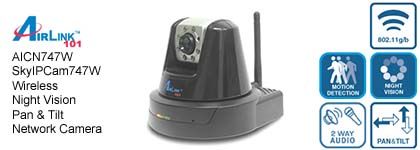

 AICN747W AirLink (AirLink 101) SkyIPCAM747W
Night Vision Pan & Tilt Wireless Security Camera
CAM-IP-AR-AICN747W
The SkyIPCam747W Wireless Night Vision Pan/Tilt Network Camera supports real-time high quality video and audio over the Internet with built-in omni-directional microphone. It supports 2-way audio transmission by adding a powered speaker (not included). You can remotely hear & talk to people at your camera view. The high-quality Infrared lens provides night monitoring for low light environment. Powerful application software "Airlink101 SkyIPCam View" supports simultaneous live view, snapshot, and video recording up to 16 Cameras. The SkyIPCam747W Supports FTP uploading and email notification with images triggered by motion detection or by Schedule.

Features:
> High–quality Day & Night vision with Infrared LEDs and auto light sensor control
> Built–in wide angle Pan/Tilt device which allows remote control from web browser
> Supports 2–Way Audio transmission with a built-in omni-directional microphone and an audio output for speaker
> Remote access from Web browser over Internet for live video/audio surveillance
> Embedded Web UI configuration with ID/Password protection
> Supports digital zoom, time stamp overlay, and mirror functions

Specifications:

Image Sensor
> Sensor Type : 1/4” Color CMOS Sensor
> Sensor Resolution : 640 x 480 pixel
> Minimum Illumination : 0.5 Lux

Infrared LEDs
Triggered by Auto Light Sensor

Lens
> Lens Type : Board Lens
> View Angle (Diagonal) : 64 degree

Video
> Image Compression : MJPEG
> Auto Exposure Control : Yes
> Auto White Balance : Yes
> Auto Gain Control : Yes
> Image Resolution and Frame Rate:
  - VGA (640 x 480): 30fps
  - QVGA (320 x 240): 30fps
  - QQVGA (160 x 120): 30fps

Audio
> Input : Internal Omni-directional Microphone
> Output: Audio Output for Mono Speaker

Communication
> Ethernet : one 10/100Mbps RJ-45
> Wireless : IEEE 802.11b/g
> Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP

Pan/Tilt
> Pan : +165° ~ -165°
> Tilt : +90° ~ -15°

Interface & Buttons
> DC Power Connector
> Ethernet Cable Connector
> GPIO Connector (1 In & 1 Out)
> Audio-out Connector
> External Antenna Connector
> Reset Button

LED
> Power LED : Orange Color
> Link/Act. LED : Green Color

Power
> Output : DC 12V / 1.5A
> Power Consumption : 9 watts Max.

Environment
> Operating Temperature : 0°C ~ 45°C (32°F ~ 113°F)
> Operating Humidity : 20% ~ 85% non-condensing
> Storage Temperature : -15°C ~ 60°C (5°F ~ 140°F)
> Storage Humidity : 0% ~ 90% non-condensing

Certification
FCC, CE

System Requirements:
> OS Supported : Windows 2000/XP/Vista
> Browser : Internet Explorer 6.0 or above, Apple Safari 2 or above, Mozilla Firefox 2.00 or above

Package Contents:
> SkyIPCam747W Wireless Night Vision Network Camera
> Antenna
> Wall Mount Kit
> GPIO Connector
> Power adapter
> Ethernet cable
> Utility CD
> Quick installation guide

Photos of product may not reflect actual content. Actual data throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.
