IP Network Camera

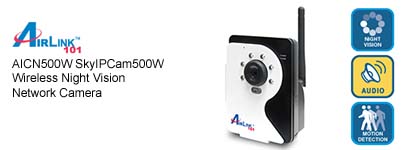

AICN500W AirLink (AirLink 101) SkyIPCAM500W
Night Vision Wireless Security Camera
CAM-IP-AR-AICN500W

The SkyIPCam500W supports real-time high quality video and audio over the Internet with built-in omni-directional microphone. The high-quality Infrared lens provides night monitoring for low light environment. Powerful application software "Airlink101 SkyIPCam View" supports simultaneous live view, snapshot, and video recording up to 16 Cameras. The SkyIPCam500W Supports FTP uploading and email notification with images triggered by motion detection or by Schedule.

Features:
> High-quality Day & Night Vision with Infrared LED and auto light sensor control
> Remote access from Web browser over Internet for live video/audio surveillance
> Embedded Web UI configuration with ID/Password protection
> Supports digital Zoom, time stamp overlay, and mirror functions
> Motion Detection with 2 Adjustable Windows
> Supports IEEE802.11b/g wireless connectivity with WEP(64/128 bit), WPA-PSK, and WPA2-PSK security settings

Specifications:

 Camera:
> Image Sensor: Sensor Type : 1/2"Color CMOS Sensor
> Sensor Resolution : 640 x 480 pixel
> Minumum Illumination: 0.5 Lux

Infrared LEDs:
>  Triggered by Auto Light Sensor

Lens:
> Lens Type : Board Lens
> View Angle (Diagonal): 60-degree
Video:
 > Image compression : MJPEG
> Auto exposure control
> Automatic white balance
> Auto Gain Control
> VGA (640 x 480) : 30fps
> Image Resolution and Frame Rate:
   VGA (640 x 480) : 30fps
   QVGA (320 x 240) : 30fps
   QQVGA (160 x 120) : 30fps

 Audio
 > Audio Input : Internal Omni-directional Microphone

 Communication:
> Ethernet : one 10/100Mbps RJ-45
> Wireless : IEEE802.11b/g
> Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP

Interface & Buttons:
> DC Power Connector
> Ethernet Cable Connector
> Reset Button

 LEDs:
> Power LED: Orange Color
> Link LED: Green Color

 Power:
> Output : DC 5V / 2.5A
> Power Consumption : 6 watts Max

Operation Environment:
> Operating Temperature : 0°C ~ 45°C
> Operating Humidity : 20% ~ 85% non-condensing
> Storage Temperature : -15°C ~ 60°C
> Storage Humidity : 0% ~ 90% non-condensing

 Certification:
> FCC, CE

System Requirements:
> OS Supported : Windows 2000/XP/Vista
> Browser : Internet Explorer 6.0 or above, Apple Safari 2 or above, Mozilla Firefox 2.00 or above

Package Contents:
> SkyIPCam500W Wireless Night Vision Network Camera
> Power adapter
> Ethernet cable (RJ-45)
> Camera stand
> Utility CD
> Quick installation guide

Photos of product may not reflect actual content. Actual data throughput will vary. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners.
