IP Network Camera

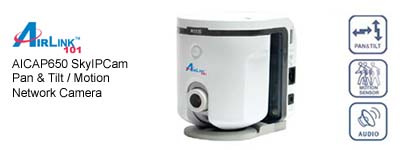

AICAP650 SkyIPCam Pan & Tilt / Motion
AirLink (Air-Link-101) Wired Security Camera
CAM-IP-AR-AIC650

The SkyIPCam650 Connects directly to a network without the need for a PC. With it’s user friendly GUI and setup, you will be able to have peace of mind where ever you are.

The SkyIPCam650 works well with your normal DSL or Cable modem DHCP network, by signing up with any free Dynamic DNS service on the web. And it come with IPViewPro Software for viewing 16 at a time.

Features:
> Thermal Infrared Sensor Motion Detection
> Built-in wide angle Pan/Tilt device which allows remote control from web browser
> MJPEG Mode Support
> Remote access from web browser for live image viewing and audio capture. Supports TCP/IP networking, UPnP, SMTP e-mail, HTTP and other Internet related protocols
> Embedded Web UI configuration with Administrator ID/Password protection

Specifications:

Camera
> Sensor Resolution : 640 x 480 pixel
> Sensor Type : Color CMOS
> Sensor Lens : f: 6.0 mm, F: 1.8

Video
> Image compression : MJPEG
> Image frame rate : 30fps@QCIF, 30fps@CIF, 20fps@VGA
> Video resolution : 160x120, 320x240, 640x480

Audio
> Audio Input : Internal Omni-directional MIC

Communication
> LAN : RJ-45, 10/100M auto-sensed, AUTO MDI-X
> Protocol : HTTP, FTP, TCP/IP, UDP, ARP, ICMP,DHCP,POP3, SMTP, PPPoE, DDNS ,UPnP

Pan/Tilt
> Pan : +120° -180°
> Tilt : +45 ~ -5°

PIR Sensor
> Sensor distance : 5M ( maximum)
> Sensor area : X: ± 15° Y: ± 15°

USB Interface
> One external USB 2.0 Host ports ( support 1.1 device)

Buzzer
> One internal alarm buzzer

Power
> Power: DC 5V 2.5A, switching type power supply
> Power consumption : 7.5W (1500 mA x 5 V) maximum

LED
> Access LED: Green-Orange Bi-color
> Status LED : Green-Red Bi-color

Certification
> FCC, CE

System Requirements
Pentium III 800MHz processor or better with at least 256MB RAM, running on Windows 98SE/2000/ME/XP or other OS supporting TCP/IP

Package Contents
> SkyIPCam650
> Quick Installation Guide
> Utility CD
> Power adapter
> Camera Stand

Photos of product may not reflect actual content.
