USB 2.0 Active
Repeater

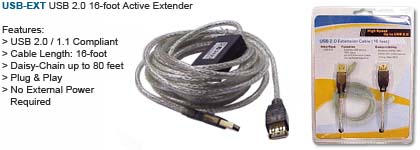

USB-EXT Active Extender
with 16-foot Cord
USB A-type Female to Male Extension Cable
CB-U2-AFAM-AC-USBEXT
The 5-meter USB
2.0 Extension Cable is perfect for extending the distance between USB
devices and your computer. Up to 5 extender cables can be linked
together. This device repeats the USB signal up to 25 meters with
maximum reliability and performance.
Features:
> Compliant
with USB 2.0, 1.1 (Type A)
> Full Forward and Backward Compatible with USB 1.1 Devices
> Support all USB speeds: High Speed (480Mbps), Full-Speed (12Mbps), and
Low Speed (1.5Mbps)
> Supports up to 5 USB extension layer
> Repeats the USB signal to maximum consistency and performance at
distance up to 25m (82ft)
> Compatible with Windows 98SE / ME / 2000 / XP / 2003 Server / Vista
and Mac OS X Operating System
> Powered by USB port. No external power adapter required.
> Supports Plug & Play for easy installation:
Specifications:
|
Interface |
USB 2.0, USB 1.1
Compliant (Type A) |
|
Supported OS |
Windows 98SE / ME / 2000 / XP / 2003 Server /
Vista and Mac OS X Operating System |
|
Cable Length |
16 feet |
|
Max Daisy-Chain
Supported |
5 |
|
Connectors |
USB Type A Male to
Female |
|
Data Rates |
High Speed: 480Mbps, Full-Speed: 12Mbps, Low
Speed: 1.5Mbps |
|
Power Mode |
Bus Powered |
|
Dimension |
48 x 28 x 16-mm (19.6
x 1.1 x 0.6-inch) |
|
Weight |
192g (6.8oz) |
Package Contents:
> Extension Cable
> Multi Language Quick Installation Guide |
