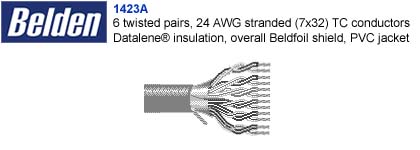

1423A Paired - Low Capacitance Computer Cable for EIA RS-232/422
24 AWG stranded (7x32) TC conductors, Datalene® insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.

PHYSICAL CHARACTERISTICS:

CONDUCTOR:
> Number of Pairs 6
> Total Number of Conductors 12
> AWG 24
> Stranding 7x32
> Conductor Material TC - Tinned Copper

INSULATION:
> Insulation Material Trade Name Datalene® Insulation Material FPE - Foam Polyethylene

Pair Color Code Chart :
> 1 - White/Blue & Blue/White
> 2 - White/Orange & Orange/White
> 3 - White/Green & Green/White
> 4 - White/Brown & Brown/White
> 5 - White/Gray & Gray/White
> 6 - Red/Blue & Blue/Red

OUTER SHIELD:
> Outer Shield Material Trade Name: Beldfoil®
> Outer Shield Type: Tape
> Outer Shield Material: Aluminum Foil-Polyester Tape
> Outer Shield % Coverage: 100 %

OUTER SHIELD DRAIN WIRE :
> Outer Shield Drain Wire: AWG 24
> Outer Shield Drain Wire Stranding: 7x32
> Outer Shield Drain Wire Conductor Material: TC (Tinned Copper)

OUTER JACKET:
> Outer Jacket Material: PVC (Polyvinyl Chloride)

OVERALL NOMINAL DIAMETER:
> Overall Nominal Diameter: .319 in.

MECHANICAL CHARACTERISTICS:
> Operating Temperature Range: -20°C To +80°C
> Non-UL Temperature Rating: 80°C (UL AWM Style 2919)
> Bulk Cable Weight: 45 lbs/1000 ft.
> Max. Recommended Pulling Tension: 66 lbs.
> Min. Bend Radius (Install): 3.25 in.

APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:

APPLICABLE STANDARDS:
> NEC/(UL) Specification CM
> CEC/C(UL) Specification CM
> AWM Specification UL Style 2919 (30 V 80°C)
> EU CE Mark (Y/N) Yes
> EU RoHS Compliant (Y/N) Yes
> EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004

FLAME TEST:
> UL Flame Test UL1685 UL Loading

PLENUM/NON-PLENUM:
> Plenum (Y/N) N

ELECTRICAL CHARACTERISTICS:
> Nom. Characteristic Impedance 100 Ohms
> Nom. Inductance .213 µH/ft
> Nom. Capacitance Conductor to Conductor @ 1 KHz 13 pF/ft
> Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz 22 pF/ft
> Nominal Velocity of Propagation 78 %
> Nom. Conductor DC Resistance @ 20 Deg. C 24 Ohms/1000 ft
> Nominal Outer Shield DC Resistance @ 20 Deg. C 13 Ohms/1000 ft
> Max. Operating Voltage - UL 30 V RMS (UL AWM Style 2919); 300 V RMS
> Max. Recommended Current 1.8 Amps per conductor @ 25°C

NOTES:
> Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling.
> Physical properties include good crush resistance and light weight.

PUT-UPS AND COLORS:

1423A 0601000
> Item Description: 6 PR #24 FHDPE FS PVC
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 48
> Jacket Color: CHROME
> Notes: C

1423A 06010000
> Item Description: 6 PR #24 FHDPE FS PVC
> Put-Up (ft.): 10000
> Ship Weight (lbs.): 500
> Jacket Color: CHROME
> Notes: C Y

1423A 060500
> Item Description: 6 PR #24 FHDPE FS PVC
> Put-Up (ft.): 500
> Ship Weight (lbs.): 25
> Jacket Color: CHROME
> Notes: C

Notes:
C = CRATE REEL PUT-UP.
Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.

Revision Number: 1 Revision Date: 07-20-2005
