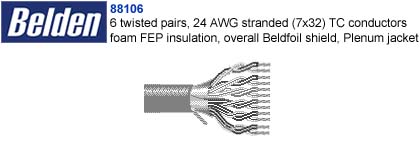

88106 Paired - Low Cap. Computer Cable for EIA RS-232/422/485 Applications
24 AWG stranded (7x32) tinned copper conductors, plenum, foam FEP insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, fluorocopolymer jacket.

PHYSICAL CHARACTERISTICS:

CONDUCTOR:
> Number of Pairs 6
> Total Number of Conductors 12
> AWG 24
> Stranding 7x32
> Conductor Material TC - Tinned Copper

INSULATION:
> Insulation Material: Foam Fluorinated Ethylene Propylene

Pair Color Code Chart :
> 1 - White/Blue & Blue/White
> 2 - White/Orange & Orange/White
> 3 - White/Green & Green/White
> 4 - White/Brown & Brown/White
> 5 - White/Gray & Gray/White
> 6 - Red/Blue & Blue/Red

OUTER SHIELD:
> Outer Shield Material Trade Name: Beldfoil®
> Outer Shield Type: Tape
> Outer Shield Material: Aluminum Foil-Polyester Tape
> Outer Shield % Coverage: 100 %

OUTER SHIELD DRAIN WIRE :
> Outer Shield Drain Wire: AWG 24
> Outer Shield Drain Wire Stranding: 7x32
> Outer Shield Drain Wire Conductor Material: TC (Tinned Copper)

OUTER JACKET:
> Outer Jacket Material: PVDF - Fluorocopolymer

OVERALL NOMINAL DIAMETER:
> Overall Nominal Diameter: .293 in.

MECHANICAL CHARACTERISTICS:
> Operating Temperature Range: -20°C To +80°C
> Bulk Cable Weight: 50 lbs/1000 ft.
> Max. Recommended Pulling Tension: 72 lbs.
> Min. Bend Radius (Install): 3 in.

APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:

APPLICABLE STANDARDS:
> NEC/(UL) Specification CMP
> CEC/C(UL) Specification CMP
> EU CE Mark (Y/N) Yes
> EU RoHS Compliant (Y/N) Yes
> EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005

FLAME TEST:
> UL Flame Test NFPA 262
> C(UL) Flame Test FT6

PLENUM/NON-PLENUM:
> Plenum (Y/N) Y

ELECTRICAL CHARACTERISTICS:
> Nom. Characteristic Impedance 100 Ohms
> Nom. Inductance 0.21 µH/ft
> Nom. Capacitance Conductor to Conductor @ 1 KHz 12.95 pF/ft
> Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz 23.3 pF/ft
> Nominal Velocity of Propagation 78 %
> Nominal Delay 1.3 ns/ft
> Nom. Conductor DC Resistance @ 20 Deg. C 24 Ohms/1000 ft
> Nominal Outer Shield DC Resistance @ 20 Deg. C 14 Ohms/1000 ft
> Max. Operating Voltage - UL 300 V RMS
> Max. Recommended Current 1.54 Amps per conductor @ 25°C

PUT-UPS AND COLORS:

88106 0081000
> Item Description: 6#24 PR FS SOLEF
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 50
> Jacket Color: GRAY
> Notes: C

88106 008500
> Item Description: 6#24 PR FS SOLEF
> Put-Up (ft.): 500
> Ship Weight (lbs.): 26.5
> Jacket Color: GRAY
> Notes: C

Notes:
C = CRATE REEL PUT-UP.

Revision Number: 1 Revision Date: 07-26-2005
© 2005 Belden Wire & Cable Company
All Rights Reserved.

Although Belden Electronics Division ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.

Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden CDT Electronics Division believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-2003); Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.

Belden CDT Electronics Division declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended
by directive 93/68/EEC.
