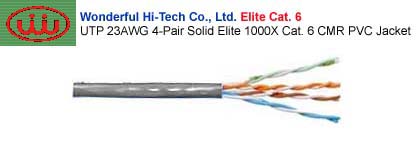

Wonderful Hi-Tech Elite Cat. 6
4 Unshield Twisted Pairs, 23 AWG Solid Conductors
CMR PVC Jacket Cat. 6
 CB-C6-1000xx-EL

 Stock item (s):
> 1000-foot in Pull-Box - Black
> 1000-foot in Pull-Box - Blue
> 1000-foot in Pull-Box - Green
> 1000-foot in Pull-Box - Gray
> 1000-foot in Pull-Box - Red
> 1000-foot in Pull-Box - White
> 1000-foot in Pull-Box - Yellow

 Description:
> Style : 75º 300V Communication Cable
> Size: UTP 23AWG X4P (Solid) Elite 1000X CAT 6 CMR
> Recognized: UL. CSA.ETL.3P

 Specification:
> Document: TUR2304601
> Style: 75º 300V Communication Cable
> Size: UTP 23AWG×4P
> Established Date: 04/03/2006
> Standard : UL444 & prEN50288-6-1 & ISO/IEC 11801 & TIA/EIA-568-B CAT 6

Application:
> Ultra high performance LAN cable are suitable for perfect audio data and video of transfer for horizontal network.

Construction:

 Conductor
> Size:  23AWG × 4P
> Construction: Solid Bare Copper
> Cond. Diam.: 1.0/0.550±0.008 mm

Insulation
> Avg. Thickness: 0.210 mm
> Min. Thickness: 0.18890 mm
> Diameter: 0.970 ± 0.020 mm
> Material: FRPE
> Color Code:
   1. Blue × White/Blue Stripe
   2. Orange x White/Orange Stripe
   3. Green x White/Green Stripe
   4. Brown × White/Brown Stripe

Shielded
> Pair Stranded: 2 Cores Stranded
> Filler (Slot): FRPE Isolator Separator
> Assembly Stranded: 4-pair Stranded

Jacketed
> Avg. Thickness: 0.55 mm
> Min. Thickness: 0.51 mm
> Diameter: 6.70 +/- 0.20 mm
> Material: PVC
> Color: Gray or other color.

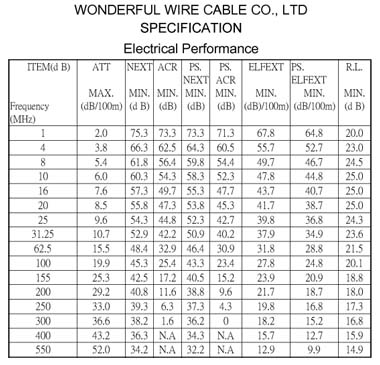

Electrical & Physical Properties
> Item: 23 AWG x 4-pair
> Rating Temp. Voltage: 75º 300V
> Conductor Resistance: 93.8 OHM/Km/20ºC Max.
> Mutual Capacitance: 56 pF/M  MAX.
> Dielectric Strength: AC 1.5 KV/Min.
> Spark Test: 2.5 KV
> Insulation:
   Un-aged: Tensile Strength - 1200 PSI Min. (0.84kg/m㎡), Elongation - 100% Min.
   Aged: Tensile Strength - Un-aged Min. 75%(100ºC×48HRS), Elongation - Un-Aged Min. 75%(100ºC×48HRS)
> Jacketed:
   Un-aged: Tensile Strength - 2000 PSI Min. (1.41kg/m㎡), Elongation - 100% Min.
   Aged: Tensile Strength - Un-aged Min. 85%(100ºC×240HRS), Elongation - Un-Aged Min. 50%(100ºC×240HRS)

Insulation:
> Shrink-Back: 150m/m, 121ºC +/- 1ºC × 1HR < (=) 9.5m/m
> Cold Bend Test: -20ºC × 4HRS NO-CRACK
> Flame Retardant Test: CMR
> AC Leakage Current through Overall Jacket: AC 1500V < (=) 10 mA
> DC Resistance Unbalance: 5% Max.
> Pair-to-Ground Capacitance Unbalance: 3300 pF/Km Max.
> Characteristic Impedance: 1 ~ 250 MHz 100+/-15 OHMS
> Structural Return Loss: 250 MHz  12.0dB Min.
> Propagation Delay: 250 MHz 536nS/100m MAX.
> Delay Skew: 1 ~ 250 MHz 40nS/100m MAX.

Marking

ELITE 1000 CAT 6 GIGASYSTEM E142890 (UL) CMR 75℃ UTP 4PR 23AWG CSA CMG LL43774 3P VERIFIED TO ISO/IEC 11801 prEN50288-6-1 XXXXXXFT
