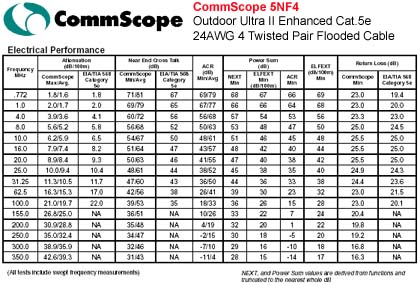

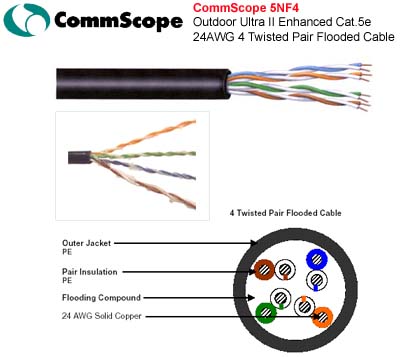

Outdoor Ultra II Enhanced Cat.5e C5e 200 Mhz Gel Filled with Flooding Compound Solid 24 AWG UTP 4 Twisted Pairs Flooded Cable CommScope 5NF4 Network Cable CB-C5E-B1000BK-CS-B Descriptions: > Ultra II Enhanced Category 5e Outdoor > ANSI/TIA/EIA 568-B.2 NEMA WC 63 > Part Number: 5NF4 4 Twisted Pair Flooded Cable Pair Identification: > Pair 1: Blue/White with Co-Extruded Blue Stripe on White Single > Pair 2: Orange/White with Co-Extruded Orange Stripe on White Single > Pair 3: Green/White with Co-Extruded Green Stripe on White Single > Pair 4: Brown/White with Co-Extruded Brown Stripe on White Single Specification: > Nominal Jacket OD: 0.240" > Nominal Jacket Thickness: 0.030" > Jacket Minimum Spot Thickness: 0.026" > Installation Temperature: 0ºC to 60ºC > Operation Temperature: -40ºC to 760ºC > Input Impedance: 100 ohms +/- 15 ohms (0.772 </= freq </= 100)                                100 ohms +/- 22 ohms (100 < freq </= 200) > Capacitance: 4.6 nF/100m nominal > DC Resistances / Unbalance: 9.38 ohms/100m Max/ 2.5% Max > Dielectric Breakdown: 2500 Volts DC Conductor to Conductor > Propagation Delay: 4.59n Sec/m Max @ 10 Mhz > Propagation Delay Skew: 13nSec/100m Max @ 10 Mhx > Nominal Velocity of Propagation: 61.7%
