> Recognized: UL. CSA. ETL.3P

Style:
> Document: TUX2404P03
> Style: 75º 300V Communication Cable
> Size: UTP 24AWG X4P (Solid) Elite 350 Cat 5e CMX
> Established Date: 2006/5/1
> Standard: UL444 ＆EN50173 ＆ISO/IEC 11801 ＆TIA/EIA-568-B.2 CAT 5E

Application:
> High Performance Lan Cable are suitable for perfect audio data and video of transfer for outdoor burial horizontal network

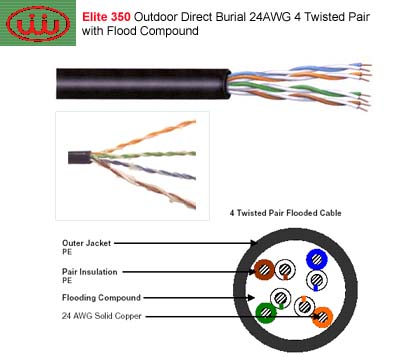

Construction:

Conductor:
> Size: 24AWG × 4P
> Construction: Solid Bare Copper
> Cond., Diam.: 1.0/0.540±0.008 mm

Insulation:
> Avg. Thickness: 0.220 mm
> Min. Thickness: 0.205 mm
> Diameter: 0.980 ± 0.020 mm
> Material: HDPE
> Color Codes:
   Blue × White/Blue Stripe
   Orange × White/Orange Stripe
   Green × White/Green Stripe
   Brown × White/Brown Stripe

Shielded:
> Pair Stranded: 2 Cores Stranded
> Assembly Stranded: 4 Pair Stranded
> Mylar Type: 15x0.025 mm
> Water Blocking Tape: 16x0.280 mm

Jacketed:
> Avg. Thickness: 0.50 mm
> Min. Thickness: 0.45 mm
> Diameter: 6.20 +/- 0.20 mm
> Material: PE
> Color: Black

Electrical & Physical Properties
> Item: 24 AWG x 4-pair
> Rating Temp. Voltage: 75º 300V
> Conductor Resistance: 93.8 OHM/Km/20ºC Max.
> Mutual Capacitance: 56 pF/M  MAX.
> Dielectric Strength: AC 1.5 KV/Min.
> Spark Test: 2.5 KV
> Insulation:
   Un-aged: Tensile Strength - 2400 PSI Min. (1.69kg/m㎡), Elongation - 300% Min.
   Aged: Tensile Strength - Un-aged Min. 75%(100ºC×48HRS), Elongation - Un-Aged Min. 75%(100ºC×48HRS)
> Jacketed:
   Un-aged: Tensile Strength - 2400 PSI Min. (1.69kg/m㎡), Elongation - 300% Min.
   Aged: Tensile Strength - Un-aged Min. 75%(100ºC×48HRS), Elongation - Un-Aged Min. 75%(100ºC×48HRS)

Insulation:
> Shrink-Back: 150m/m, 121ºC +/- 1ºC × 1HR < (=) 9.5m/m
> Cold Bend Test: -20ºC × 4HRS NO-CRACK
> Flame Retardant Test: CMX
> AC Leakage Current through Overall Jacket: AC 1500V < (=) 10 mA
> DC Resistance Unbalance: 5% Max.
> Pair-to-Ground Capacitance Unbalance: 3300 pF/Km Max.
> Characteristic Impedance: 1 ~ 350 MHz 100+/-15 OHMS
> Structural Return Loss: 350 MHz  10.6dB Min.
> Propagation Delay: 350 MHz 534nS/100m MAX.
> Delay Skew: 1 ~ 350 MHz 45nS/100m MAX.

Marking

ELITE 350 E142890 (UL) TESTED TO 350MHz CMX OUTDOOR 75℃ UTP 4PR 24AWG CSA LL43774 ETL VERIFIED TO TIA/EIA-568-B.2 CAT 5E XXXXXXFT
