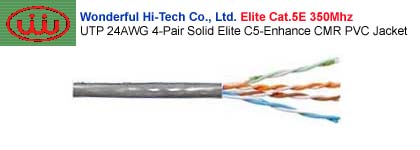

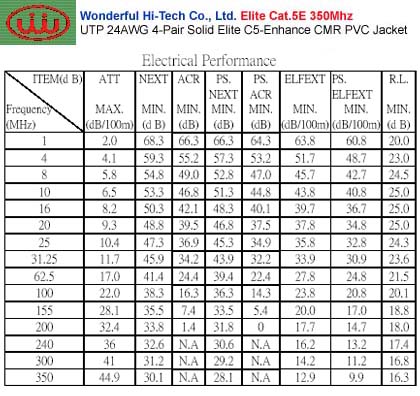

click here for Electrical Performance

Stock item (s):
> 1000-foot in Pull-Box - Black
> 1000-foot in Pull-Box - Blue
> 1000-foot in Pull-Box - Green
> 1000-foot in Pull-Box - Gray
> 1000-foot in Pull-Box - Red
> 1000-foot in Pull-Box - White
> 1000-foot in Pull-Box - Yellow

Description:
> Document: TUL2404P01
> Manufacturer: Wonderful Wire Cable Co., Ltd.
> Style: 75º 300V Communication Cable
> Size: UTP 24AWG X4P (Solid) Elite 350 Cat 5e CMR
> Established Date: 2004/7/1

> Recognized: UL. CSA. ETL.3P

Style:
> Document: TUL2404P01
> Style: 75º 300V Communication Cable
> Size: UTP 24AWG X4P (Solid) Elite 350 Cat 5e CMR
> Established Date: 2005/1/19
> Standard: IEC 332,754,1034,811 & HD624.7 & TIA/EIA-568-B.2 CAT 5E

Application:
> Ultra High Performance Lan Cable are suitable for perfect audio data and video of transfer for horizontal network

Construction:

Conductor:
> Size: 24AWG × 4P
> Construction: Solid Bare Copper
> Cond., Diam.: 1.0/0.520±0.008 mm

Insulation:
> Avg. Thickness: 0.201 mm
> Min. Thickness: 0.185 mm
> Diameter: 0.930 ± 0.020 mm
> Material: FRPE
> Color Codes:
   Blue × White/Blue Stripe
   Orange × White/Orange Stripe
   Green × White/Green Stripe
   Brown × White/Brown Stripe

Shielded:
> Pair Stranded: 2 Cores Stranded
> Assembly Stranded: 4 Pair Stranded

Jacketed:
> Avg. Thickness: 0.55 mm
> Min. Thickness: 0.51 mm
> Diameter: 5.40 +/- 0.20 mm
> Material: Plenum
> Color: Gray or other color.

Electrical & Physical Properties
> Item: 24 AWG x 4-pair
> Rating Temp. Voltage: 75º 300V
> Conductor Resistance: 93.8 OHM/Km/20ºC Max.
> Mutual Capacitance: 56 pF/M  MAX.
> Dielectric Strength: AC 1.5 KV/Min.
> Spark Test: 2.5 KV
> Insulation:
   Un-aged: Tensile Strength - 1200 PSI Min. (0.84kg/m㎡), Elongation - 100% Min.
   Aged: Tensile Strength - Un-aged Min. 75%(100ºC×48HRS), Elongation - Un-Aged Min. 75%(100ºC×48HRS)
> Jacketed:
   Un-aged: Tensile Strength - 2000 PSI Min. (1.41kg/m㎡), Elongation - 100% Min.
   Aged: Tensile Strength - Un-aged Min. 85%(100ºC×240HRS), Elongation - Un-Aged Min. 50%(100ºC×240HRS)

Insulation:
> Shrink-Back: 150m/m, 121ºC +/- 1ºC × 1HR < (=) 9.5m/m
> Cold Bend Test: -20ºC × 4HRS NO-CRACK
> Flame Retardant Test: CMP
> AC Leakage Current through Overall Jacket: AC 1500V < (=) 10 mA
> DC Resistance Unbalance: 5% Max.
> Pair-to-Ground Capacitance Unbalance: 3300 pF/Km Max.
> Characteristic Impedance: 1 ~ 350 MHz 100+/-15 OHMS
> Structural Return Loss: 350 MHz  10.6dB Min.
> Propagation Delay: 350 MHz 536nS/100m MAX.
> Delay Skew: 1 ~ 350 MHz 40nS/100m MAX.

Marking

ELITE 350 ENHANCED CATEGORY CABLE TESTED TO 350MHz FOR GIGABIT SYSTEM E142890 (UL) CMR 75℃ UTP 4PR 24AWG CSA CMG LL43774 ETL & 3P VERIFIED TO TIA/EIA-568-A-5 CAT 5e XXXXXXFT
