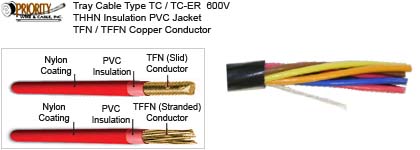

Tray Cable Type TC / TC-ER (Exposed Run) 600V
THHN Insulation (Thermoplastic High Heat-resistant Nylon-coated)
PVC Jacket TFN (Solid) or TFFN (Stranded) Copper Conductor
CB-TC-xxx
Download
Reference List (click to open)
Application:
Power, control,
signal, communication and lighting circuits, For installation in
cable trays accordance with Article 336. Cable is approved for use
in raceways, supported by messenger wire in open air, for direct
burial applications, in Class I & II division 2 hazardous locations
and for Class 1 circuits as permitted in Article 725.11(b). May be
installed in both wet and dry locations or in areas exposed to
chemicals and oils.
Conductors:
Soft bare
annealed copper per ASTM B-3, Class B stranding per ASTM B-8
Insulation:
Heat and moisture
resistant Polyvinylchloride (PVC) per UL 62. Clear Polyamide (Nylon)
jacket per UL 62.
Color Code:
ICEA Method 1, E2
- E1 available upon request (Formerly K2 or K1)
Assembly:
Conductors are
cabled together with or without fillers as required to form a round,
compact cable core and with a binder tape.
Jacket:
Sunlight
resistant black PVC rated 90°C per UL 1277.
Flame Test:
IEEE 383 70,000
BTU vertical tray flame test.
|
