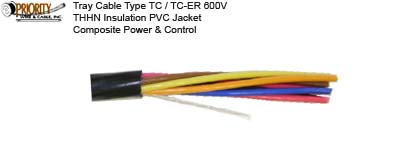

• Spec - Priority Tray Cable (Type TC) TC-ER THHN PVC Composite

Reference List (click to open)

Application:
Power, control, signal, communication and lighting circuits, For installation in cable trays in accordance with Article 336. Cable is approved for use in raceways, supported by messenger wire in open air, for direct burial applications, in Class I & II division 2 hazardous locations and for Class 1 circuits as permitted in Article 725.11(b). May be installed in both wet and dry locations or in areas exposed to chemicals and oils.

Conductors:
Soft bare annealed copper per ASTM B-3, Class B stranding per ASTM B-8

Insulation:
Heat and moisture resistant Polyvinylchloride (PVC) per UL 62. Clear Polyamide (Nylon) jacket per UL 62.

Color Code:
Power conductors Method 4, Control Conductors Method 1-E2

Assembly:
Conductors are cabled together with or without fillers as required to form a round, compact cable core and with a binder tape.

Jacket:
Sunlight resistant black PVC rated 90°C per UL 1277.

Flame Test:
IEEE 383 70,000 BTU vertical tray flame test.
