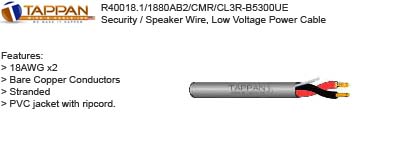

Tappan 1880AB2 Spec # R40018
 Security Wire, Speaker Wire, Low Voltage Power Cable
18 AWG Stranded BC (Bare Copper) Conductors
PVC Jacket with Ripcord
 CB-S-182-xxx

 Click here for PDF Specification: 1800AB2-CMR
Specification:

  • CONSTRUCTION : 18AWG 7/0152 BARE COPPER

  • 2 CONDUCTORS.

  • COLOR CODE : CC#17: BLACK,RED

  • INSULATION : 0.009 Inch, 75 SR-PVC

  • SHIELD/DRAIN : N/A

  • CAPACITANCE : 29.3 pF/ft Nom.

  • VEL OF PROP : 55%

  • IMPEDANCE : 63 OHMS

  • RESISTANCE : 6.92 OHMS D.C. PER 1000 FT @ 68 DEG. F

  • TEMP/VOLTAGE : N/A

  • JACKET : CHROME GRAY, 0.020 Inch, PVC -- 0.166 Nom OD

  • CABLE WT : 18.06 Lb/1000Ft Approx (EXCLUDING REEL OR BOX)

  • PRINT LEGEND : E118871 CMR/CL3R/FPLR 18AWG (UL) C(UL) CMG MADE IN USA

  • UL : CMR/CL3R

  • MISC : MADE IN USA

* +/- 10% Manufacturing tolerance
* On non-standard product, customer agrees to accept all lengths manufactured
