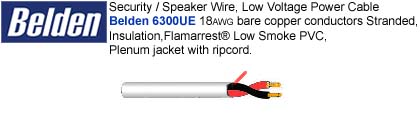

Speaker Wire 18awg 2-conductor CMP

Belden 6300UE
Security Wire, Speaker Wire, Low Voltage Power Cable
18 AWG 7X26 Stranded BC (Bare Copper) Conductors
Flamarrest® LS PVC (Low Smoke Polyvinylchloride) Insulation,
Plenum Jacket with Ripcord
CB-S-P12x2-xxx-B

Description:
18 AWG bare copper conductors, Flamarrest® insulation, conductors cabled, Flamarrest® jacket with ripcord, sequential footage marking every two feet.

PHYSICAL CHARACTERISTICS:

CONDUCTOR:
> Number of Conductors: 2
> Total Number of Conductors: 2
> AWG: 18
> Stranding: 7x26
> Conductor Material: BC - Bare Copper

INSULATION:
> Insulation Material Trade Name: Flamarrest®
> Insulation Material: LS PVC - Low Smoke Polyvinylchloride
> Nom. Insulation Wall Thickness: .009 in.

OVERALL CABLING:
> Overall Cabling Lay Length: 3.5 in.
> Overall Cabling Twist: 3.4 ft
> Overall Cabling Color Code Chart: Black, Red

OUTER SHIELD:
> Outer Shield Material: Unshielded

OUTER JACKET:
> Outer Jacket Material Trade Name: Flamarrest®
> Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
> Outer Jacket Nominal Wall Thickness: .015 in.
> Outer Jacket Ripcord: Yes

OVERALL NOMINAL DIAMETER:
> Overall Nominal Diameter: .157 in.

MECHANICAL CHARACTERISTICS:
> Operating Temperature Range: 0°C To +75°C
> UL Temperature Rating: 75°C
> Bulk Cable Weight: 34.316.5 lbs/1000 ft.
> Max. Recommended Pulling Tension: 45 lbs.
> Min. Bend Radius (Install): 1.6 in.

APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:

APPLICABLE STANDARDS:
> NEC/(UL) Specification: CMP
> NCE Articles: 800
> CEC/C(UL) Specification: CMP
> EU CE Mark (Y/N): Yes
> EU RoHS Compliant (Y/N): Yes
> EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005

FLAME TEST:
> UL Flame Test: NFPA 262
> CSA Flame Test: FT6

PLENUM/NON-PLENUM:
> Plenum (Y/N): Y
> Non-Plenum Number: 5302UE

ELECTRICAL CHARACTERISTICS:
> Nom. Inductance: .15 µH/ft
> Nom. Capacitance Conductor to Conductor @ 1 KHz: 30 pF/ft
> Nom. Conductor DC Resistance @ 20 Deg.: C 6.5 Ohms/1000 ft
> Max. Operating Voltage - UL: 300 V RMS
> Max. Recommended Current: 4 Amps per conductor @ 25°C

PUT-UPS AND COLORS:

6300UE 008C500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): C500
> Ship Weight (lbs.): 8
> Jacket Color: Gray

6300UE 008U500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U500
> Ship Weight (lbs.): 7.5
> Jacket Color: GRAY

6300UE 009U1000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U1000
> Ship Weight (lbs.): 18
> Jacket Color: WHITE

6300UE 0101000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 18
> Jacket Color: BLACK
> Note: C

6300UE 0105000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): 5000
> Ship Weight (lbs.): 90
> Jacket Color: BLACK

6300UE 010U1000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U1000
> Ship Weight (lbs.): 18
> Jacket Color: BLACK

6300UE 010U500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U500
> Ship Weight (lbs.): 9.5
> Jacket Color: BLACK

6300UE 877500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): 500
> Ship Weight (lbs.): 9
> Jacket Color: NATURAL

6300UE 877C500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): C500
> Ship Weight (lbs.): 8
> Jacket Color: NATURAL

6300UE 0081000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 14
> Jacket Color: GRAY
> Note: C

6300UE 008U1000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U1000
> Ship Weight (lbs.): 17
> Jacket Color: GRAY

6300UE 8771000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): 1000
> Ship Weight (lbs.): 18
> Jacket Color: NATURAL
> Note: C

6300UE 877U1000
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U1000
> Ship Weight (lbs.): 17
> Jacket Color: NATURAL

6300UE 877U500
> Item Description: 2 #18 Flamarrest®
> Put-Up (ft.): U500
> Ship Weight (lbs.): 9.5
> Jacket Color: NATURAL

Note: C = CRATE REEL PUT-UP.

Revision Number: 1 Revision Date: 09-28-2005
© 2006 Belden Wire & Cable Company
All Rights Reserved.

Although Belden Electronics Division ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.

Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden CDT Electronics Division believes this product to be in compliance with the following environmental regulations: California Proposition 65 Consent Judgment For Wire & Cable Mfgs.(San Francisco Superior Court Nos. 312962 And 320342); EU RoHS (Directive 2002/95/EC, 27-Jan-2003);Material manufactured prior to the compliance date may still be in stock at Belden facilities and in our Distributor's inventory. EU ELV (Directive 2000/53/EC, 18-Sept-2000); EU WEEE (Directive 2002/96/EC, 27-Jan-2003); And EU BFR (Directive 2003/11/EC, 6-Feb-2003). The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge, information and belief at the date of its publication. The information provided in the Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.

Belden CDT Electronics Division declares this product to be in compliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.
