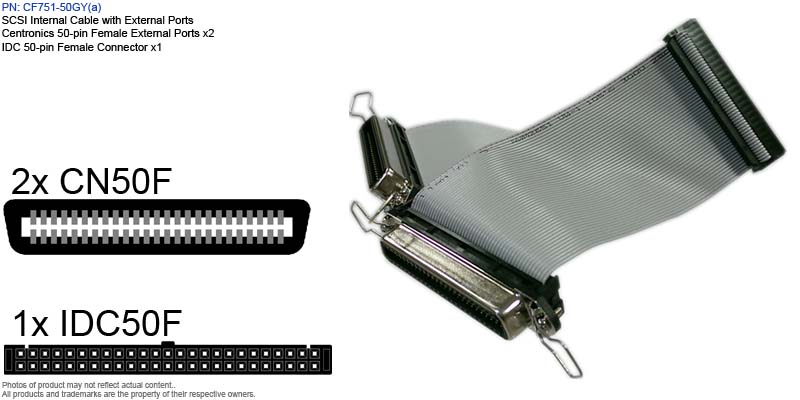

SCSI
Internal Cable with External Ports
CB-SCK1-xxxFeatures:
- Category: SCSI
Internal Cable with External Ports for SCSI External Enclosure
- Manufacturer:
Not Specified
- Brand: Unbranded
- Part Number:
CF751-50GY-2F1F-12 (a)
- Rating: SCSI 1 / SCSI
2
- Construction:
AWM 28AWG VW-1 50-conductor Ribbon Cable
- AWM (Appliance Wiring
Material)
- The VW-1 Flame test,
also known as the Vertical Wire Flame test, evaluates a wire/cable's
ability to resist fire while vertically suspended. The flame is
applied for 15 seconds and repeated 4 more cycles after each time
when the wire stops burning for a total of 5 cycles. To pass the
VW-1 test, the wire must not burn longer than 60 seconds after the
application of fire and neither the indicator paper flag above the
sample nor cotton batting below it may ignite during the test. (for
reference only, info source: google search)
- Connectors:
- 2x Centronics 50-pin Female
- 1x IDC 50-pin Female
- Overall Length:
12 inch (measured by ruler, all lengths for reference only)
- 5.5 inch - from Centronics 50-pin Female External Port to IDC 50-pin Female Internal
Connector
- 5.5 inch - from
IDC 50-pin Female Internal Connector to Centronics 50-pin Female
External Port
- Weight:
- Net Weight: 3 oz
- Gross Weight: 6.4 oz
- Condition: New, pulled
from unsold SCSI External Enclosure.
- Package: Non-retail
packaging, in unprinted box or plastic bag.
- For use with or pulled
from: (for reference only)
- Pulled from unsold
CF-751 External SCSI Enclosure.
- Widely used for SCSI
External Enclosure.
|
