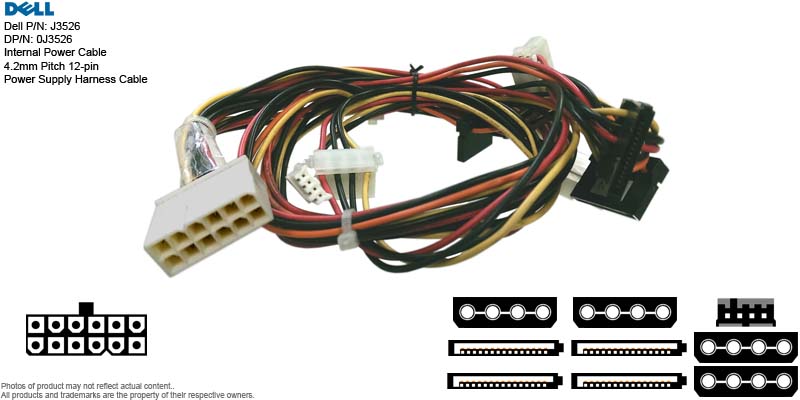

Power Internal Cable
4.20mm Pitch 12-pin Female to
Floppy / IDE / SATA Power Harness Cable (Splitter Cable)

CB-PWI-xxx


Features:
  • Description: Computer Power Internal Cable 4.20mm pitch 12-pin Female to Floppy / IDE / SATA Power Harness Cable (Splitter Cable).
  • Manufacturer: Not Specified
  • Brand or Distributor: Dell
  • Model:
    • Dell P/N: J3526
    • DP/N: 0J3526
  • Connectors:
    • 1x Dell PWRFD 4.20mm pitch 12-pin Female Connectors
    • 3x SATA Power Connector
    • 4x IDE Peripheral Power Connector (Molex Equivalent)
    • 1x Floppy Power Connector
  • Wire Length:
    • Wire #1
      • 20-inch - from Dell PWRFD Female Connector to SATA (HDD 0)
      • 4-inch - from SATA (HDD 0) to SATA (HDD 1)
      • 2.5-inch - from SATA (HDD 1) to IDE (P8)
    • Wire #2
      • 23-inch - from Dell PWRFD Female Connector to SATA (HDD 2)
      • 4-inch - from SATA (HDD 2) to SATA (Bay 3)
      • 2.5-inch - from SATA (Bay 3) to IDE (P7)
    • Wire #3
      • 27-inch - from Dell PWRFD Female Connector to IDE (Bay 2)
      • 6-inch - from IDE (Bay 2) to IDE (Bay 1)
      • 7-inch - from IDE (Bay 1) to Floppy
  • Condition: Used, may have signs of cosmetic wear or signs of use.
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • For use with or pulled from: (for reference only):
    • Pulled from Dell PowerEdge SC1420 Server Computer.
