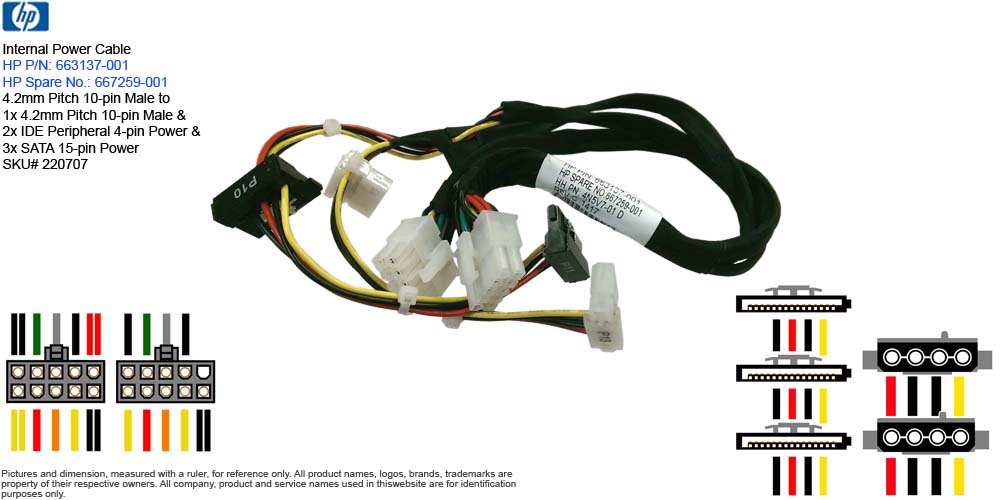

Internal Power Cable
HP P/N: 663137-001 HP Spare No.: 667259-001
4.2mm Pitch 10-pin Male to 1x 4.2mm Pitch 10-pin Male &
2x IDE Peripheral 4-pin Power &
3x SATA 15-pin Power
SKU# 220707
CB-PWI-xxx


Features:
  • Description: Internal Power Cable, HP P/N: 663137-001 HP Spare No.: 667259-001, 4.2mm Pitch 10-pin Male to 1x 4.2mm Pitch 10-pin Male & 2x IDE Peripheral 4-pin Power & 3x SATA 15-pin Power, SKU# 220707
  • Manufacturer: Not Specified
  • Brand or Distributor: HP
  • Model:
    • HP P/N: 663137-001
    • HP Spare No.: 667259-001
    • Compatible HH PN:
      • 4N5V7-01 D Rev C 1417 (SATA Power Connectors with Metal Locking Clips)
      • 4N5V7-01 M Rev C 1314 (SATA Power Connectors with Metal Locking Clips)
  • Connectors:
    • 1x HP RPS Riser 4.20mm pitch 10-pin Male Connector
    • 1x HP BP1 4.20mm pitch 10-pin Male Connector
    • 2x IDE Peripheral 4-pin Power Connector (Molex Equivalent)
    • 3x SATA 15-pin Power Connector
  • Wire Length:
    • Wire #1: 13-inch
      • 13-inch - from HP RPS Riser 4.20mm pitch 10-pin Male Connector to HP BP1 4.20mm pitch 10-pin Male Connector
    • Wire #2: 18-inch
      • 13-inch - from HP RPS Riser 4.20mm pitch 10-pin Male Connector to 1st IDE Peripheral 4-pin Power Connector
      • 4-inch - from 1st IDE Peripheral 4-pin Power Connector to 2nd IDE Peripheral 4-pin Power Connector
    • Wire #3: 19.5-inch
      • 11-inch - from HP RPS Riser 4.20mm pitch 10-pin Male Connector to 1st SATA 15-pin Power Connector
      • 4-inch - from 1st SATA 15-pin Power Connector to 2nd SATA 15-pin Power Connector
      • 4-inch - from 2nd SATA 15-pin Power Connector to 3rd SATA 15-pin Power Connector
  • Weight: 3.2 oz (estimated shipping weight 5 oz)
  • Condition: Used, may have signs of cosmetic wear or signs of use.
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • For use with or pulled from: (for reference only):
    • Pulled from HP ProLiant ML350P Gen8 Server Backplane.
