Power Internal Cable
IBM P/N: 81Y6090, FRU P/N: 81Y7537, EC: N31192G

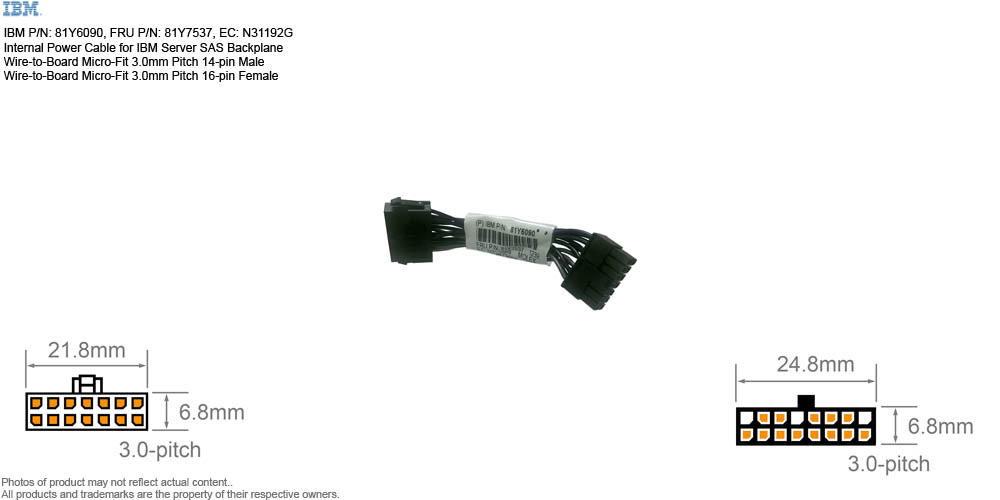

Internal Power Cable for IBM Server SAS Backplane
Wire-to-Board Micro-Fit 3.0mm Pitch 14-pin Male
Wire-to-Board Micro-Fit 3.0mm Pitch 16-pin Female
CB-PWI-xxx


Features:
  • Description: Internal Power Cable for IBM Server SAS Backplane
  • Manufacturer: Not Specified
  • Brand or Distributor: IBM
  • Model:
    • IBM P/N: 81Y6090
    • FRU P/N: 81Y7537
    • EC: N31192G
  • Connectors:
    • 1x Micro-Fit 3.0mm pitch Dual Row Header 14-pin 14-conductor Male
    • 1x Micro-Fit 3.0mm pitch Dual Row Receptacle 16-pin 13-conductor Female
  • Overall Wire Length: 3-inch
  • Weight: 0.5 oz (estimated shipping weight 3 oz)
  • Condition: Used, may have signs of cosmetic wear or signs of use.
  • Packaging: Non-retail packaging, in unprinted box or plastic bag.
  • For use with or pulled from: (for reference only):
    • Pulled from IBM System x3500 M4 Surver Computer with YILAN P10 Mother Board and SAS Backplane (P/N: 80Y9295, FRU: 49Y4462, EC: L80664E).
