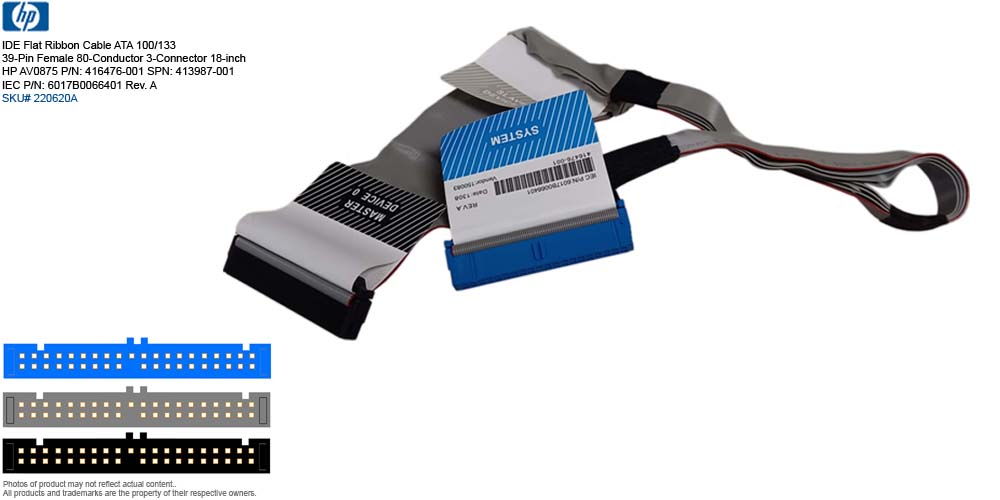

IDE Flat Ribbon Cable ATA 100/133
39-Pin Female 80-Conductor 3-Connector 18-inch
HP AV0875 P/N: 416476-001 SPN: 413987-001 IEC P/N: 6017B0066401 Rev. A
SKU# 220620A
CB-IDE-39F80C3E18GY
Features:
- Description: IDE Flat
Ribbon Cable ATA 100/133, 39-Pin Female 80-Conductor 3-Connector
18-inch, HP AV0875 P/N: 416476-001 SPN: 413987-001 IEC P/N:
6017B0066401 Rev. A, SKU# 220620A
- Manufacturer: Not
Specified
- Brand Name or
Distributor: HP
- Model:
- HP AV0875
- P/N: 416476-001
- SPN: 413987-001
- IEC P/N: 6017B0066401
Rev. A
- SKU# 220622A
- UPC: N/A
- Specification:
- IDE Cable supports
ATA 100/133
- 3x 40-pin
Connectors (pin #20 blocked)
- 80-conductor
- Length:
- Overall
Length: 18-inch
- Mother Board
(System Blue Connector) to Slave Drive (Device 1 Gray Connector): 10-1/2 inch
- Slave Drive
(Device 1 Gray Connector) to Master Drive (Device 0 Black Connector):
5-1/2
inch
- Weight 2 oz
(estimated shipping weight 5 oz)
- Condition: Used, may
have signs of cosmetic wear.
- Packaging:
Non-retail packaging, single-piece or multiple-piece in unprinted
box or plastic bag.
- For use with or
pulled from:
- Pulled from
HP Proliant Server.
|
