Floor Track for Cables
Plastic Cord Cover with Double Sided Tape
Cable Concealer; Cable Positioning Duct; Surface Raceway
CBC-xxx

Features & Specification:

  • Adhesive Type: Acrylic

  • Adhesive Thickness: 2.75mils

  • Total Thickness: 3.75mils

  • Peel Adhesion: Perm Side: 80 oz./in. width Removable Side: 16 oz/in. width

  • Elongation: 100%

  • Release Liner: 55 lb super calendered kraft

  • Shear Strength : Perm Side: 2.2 psi 96+ hours

  • Removable Side: 2.2 psi 96+ hours

  • Temperature Resistance: 275°F

  • Min. Application Temp: 35°F

Ordering Information:

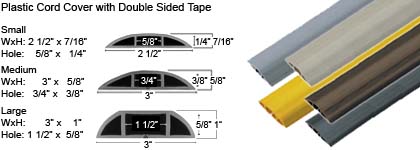

Small - WxH: 2 1/2” x 7/16”; Center Hole: 5/8” x 1/4”

Length \ Color Beige Black Brown Gray Yellow
5-foot V V x V x
10-foot V V x V x
15-foot V V x V x
25-foot V V x V x
50-foot V V x V x

Medium - WxH: 3” x 5/8”; Center Hole: 3/4” x 3/8”

Length \ Color Beige Black Brown Gray Yellow
5-foot V V V V V
10-foot V V V V V
15-foot V V V V V
25-foot V V V V V
50-foot V V V V V

Large - WxH: 3” x 1”; Center Hole: 1 1/2” x 5/8”

Length \ Color Beige Black Brown Gray Yellow
5-foot V x V V V
10-foot V x V V V
15-foot V x V V V
25-foot V x V V V
50-foot x x x x x
