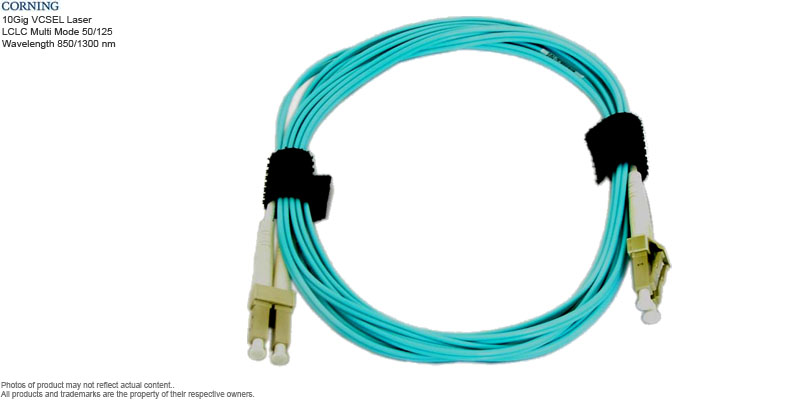

Fiber Optic Patch Cord
Corning 10Gig VCSEL Laser
LCLC MultiMode 50/125
Wavelength 850/1300 nm
CB-FB-xxx
Link:
Description:
Laser optimized
multimode fiber cable assemblies offer a unique solution for premise
networking applications by enabling data transmission over long
distances, previously only available through single mode solutions.

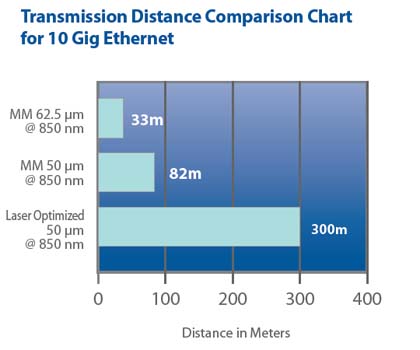

Laser Optimized 50/125 fiber is designed to utilize VCSEL lasers in
the 850nm window to allow transmission speeds up to 10 Gigabits per
second (Gbps) over greater distance.
Performance Specifications:
-
Optical Specifications Multi-mode: 50/125
-
Insertion Loss (max.): 0.5dB
-
Temperature Range: -40° -85°
-
Mating Durability: <0.2dB
- Attenuation, dB/km max.: 1.0
Fiber Specifications
-
Connector Types: FC,ST,SC,LC,MTRJ, OPTI-JACK
-
Wavelength, nm 850/1300
-
Core Diameter, μm 50
-
Cladding Diameter, μm 125
Construction Specifications:
|
Jacket O.D. |
Glass |
Buffer |
Strength |
Member Jacket |
|
1.6mm |
Corning |
900um |
Kevlar |
OFNR & OFNP |
|
2.0mm |
Corning |
900um |
Kevlar |
OFNR & OFNP |
|
3.0mm |
Corning |
900um |
Kevlar |
OFNR & OFNP |
|
