Product Description

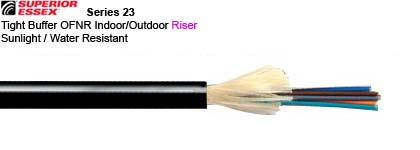

Superior Essex indoor/outdoor tight buffer Riser fiber optic cables are ideally suited for installations that require partial or complete routing of pathways outside the building. These cables can be installed in conduits, inner-ducts and steam tunnels, as well as within building riser and Riser locations. The tight buffer feature of these indoor/outdoor cables eliminates the need for breakout kits and or other special termination equipment associated with loose tube OSP cables. The outer jacket is comprised of a rugged UL listed sunlight resistant polymer that allows for the cable to be exposed to direct sunlight without the concern of material degradation and greatly reduces moisture migration.

Physical Description

The design consists of flexible tight buffer material extruded over the fiber to a diameter of 900 μm for use with standard connectors. Dielectric yarns are applied for additional strength and a flame resistant outer jacket covers the strength members.

Features

• Tested and Qualified to GR-409
• Exceeds TIA/EIA 568-B.3 optical performance
• 900 μm tight buffered fibers
• Black, UL listed Sunlight Resistant outer jacket
• OFNR water resistant, Indoor/Outdoor design
• All – dielectric
• Jacket Ripcord

Benefits

• Assurance that cable investment will last
• Future-proof fiber performance for current and future networking applications
• Connect directly to mechanical connectors
• Can be placed in open path ways without the need for additional cable protection and costs
• No additional grounding materials need to be purchased

Applications

• Intrabuilding backbones
• Interbuilding backbone (in conduit)
• Conduit pathways
• Service entrance to communication closets

Environmental Specifications

• Operation: -40°C to + 75°C
• Storage/Shipping: -40°C to + 75°C
• Installation: -20°C to + 65°C
• Crush: 10N/mm
• Impact: 6 N-m
